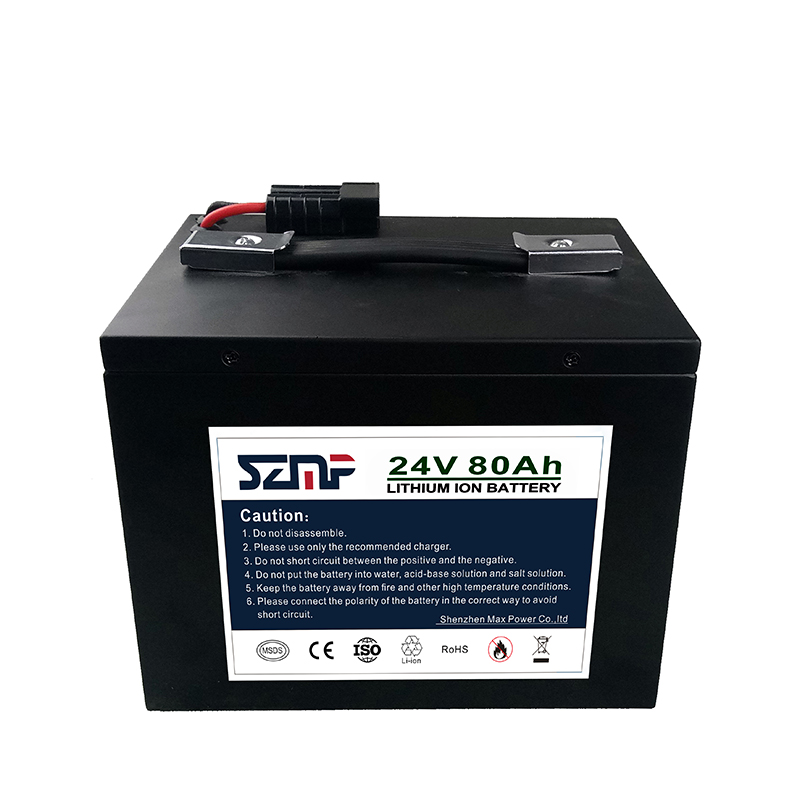

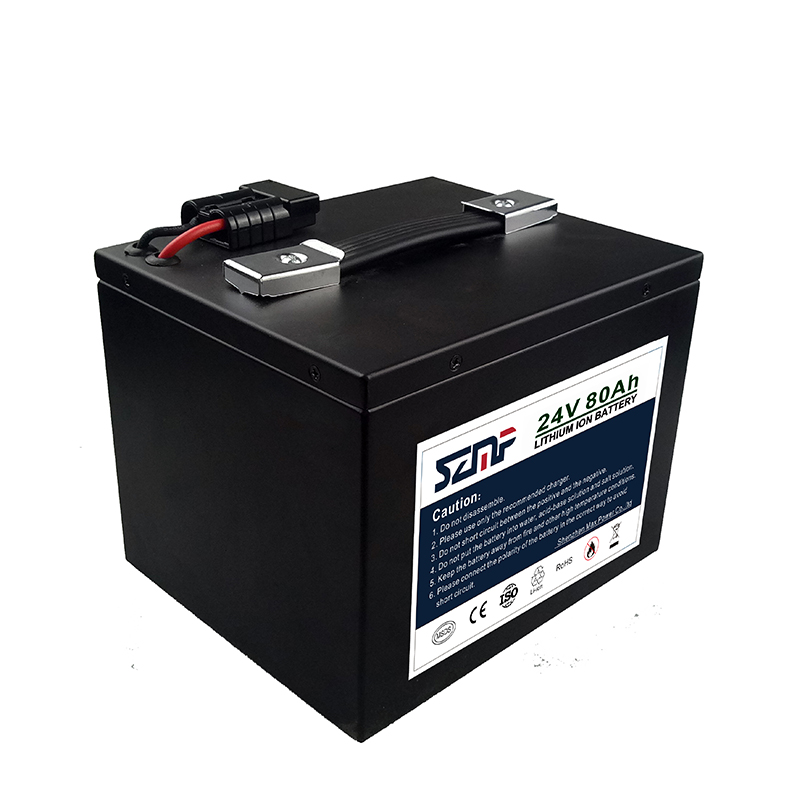

24V80A

24V80A
Key Feature
Nominal Voltage 25.2V
Nominal Capacity 80Ah (0.2C to8.4V at 25℃)
Power 2016Wh
(AC) Internal Resistance ≤180mΩ
Cycle life >500 cycles @0.2C 80%DOD
Month self-discharge <3%
Charge voltage 29.4±0.2V
Charge mode 0.2C to 29.4V, then29.4V,charge current to 0.02C (CC/CV)
Charge current 10-60A
Max charge current 80A
Charge cut-off voltage 29.4V±0.2V
Constant current 10-60A
Max constant current 80A
Discharge cut-off voltage 19.6V
Cell / Connection mode NCM 18650 7 S 32 P
Case 胶壳
Dimension(mm) 490*172*240
Weight(lbs./kg.) 13.5kg
Terminal M8铜端子
Communication Protocol (Optional) RS485/CAN2.0
Extend (Optional) LED/蓝牙
Nominal Voltage 25.2V
Nominal Capacity 80Ah (0.2C to8.4V at 25℃)
Power 2016Wh
(AC) Internal Resistance ≤180mΩ
Cycle life >500 cycles @0.2C 80%DOD
Month self-discharge <3%
Charge voltage 29.4±0.2V
Charge mode 0.2C to 29.4V, then29.4V,charge current to 0.02C (CC/CV)
Charge current 10-60A
Max charge current 80A
Charge cut-off voltage 29.4V±0.2V
Constant current 10-60A
Max constant current 80A
Discharge cut-off voltage 19.6V
Cell / Connection mode NCM 18650 7 S 32 P
Case 胶壳
Dimension(mm) 490*172*240
Weight(lbs./kg.) 13.5kg
Terminal M8铜端子
Communication Protocol (Optional) RS485/CAN2.0
Extend (Optional) LED/蓝牙
