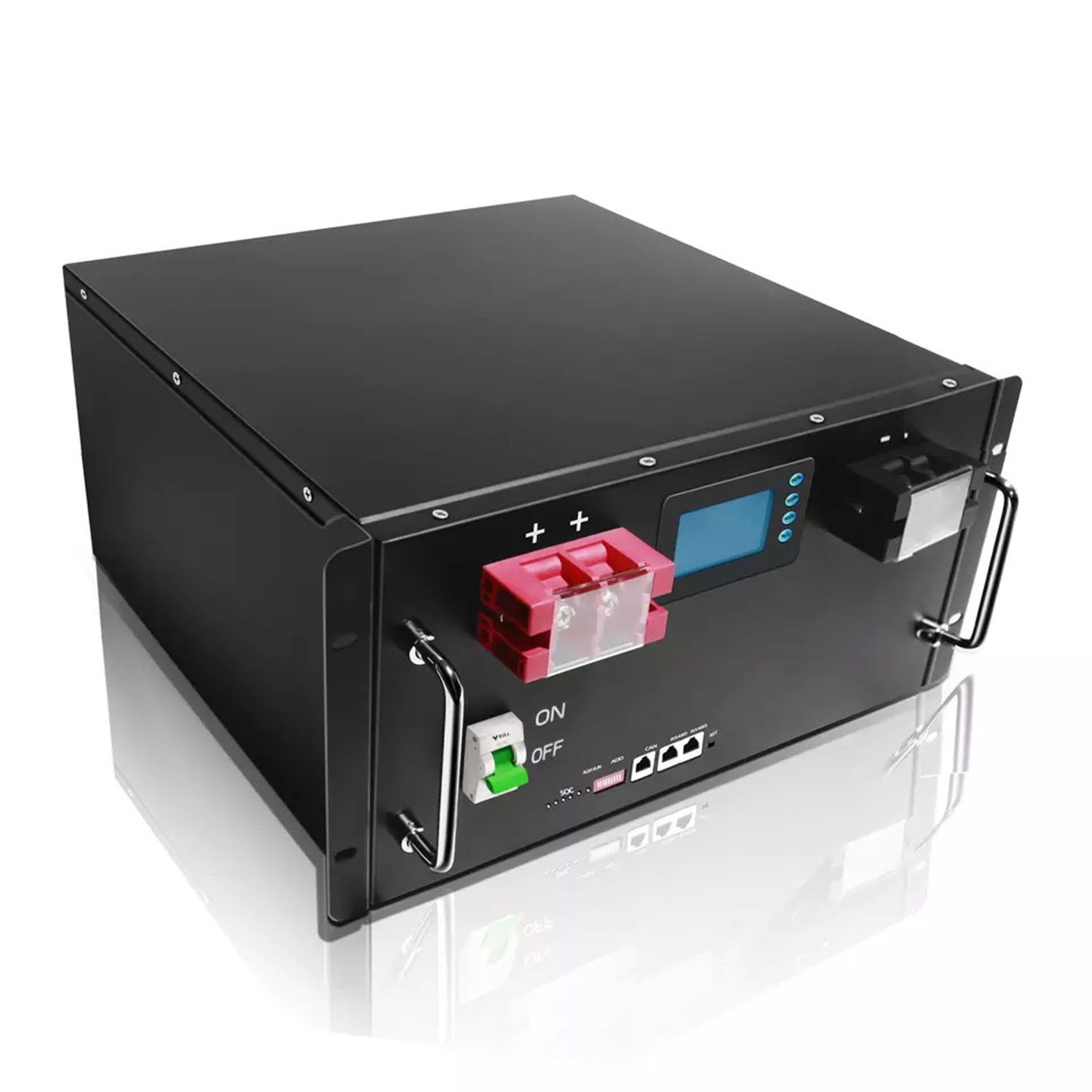

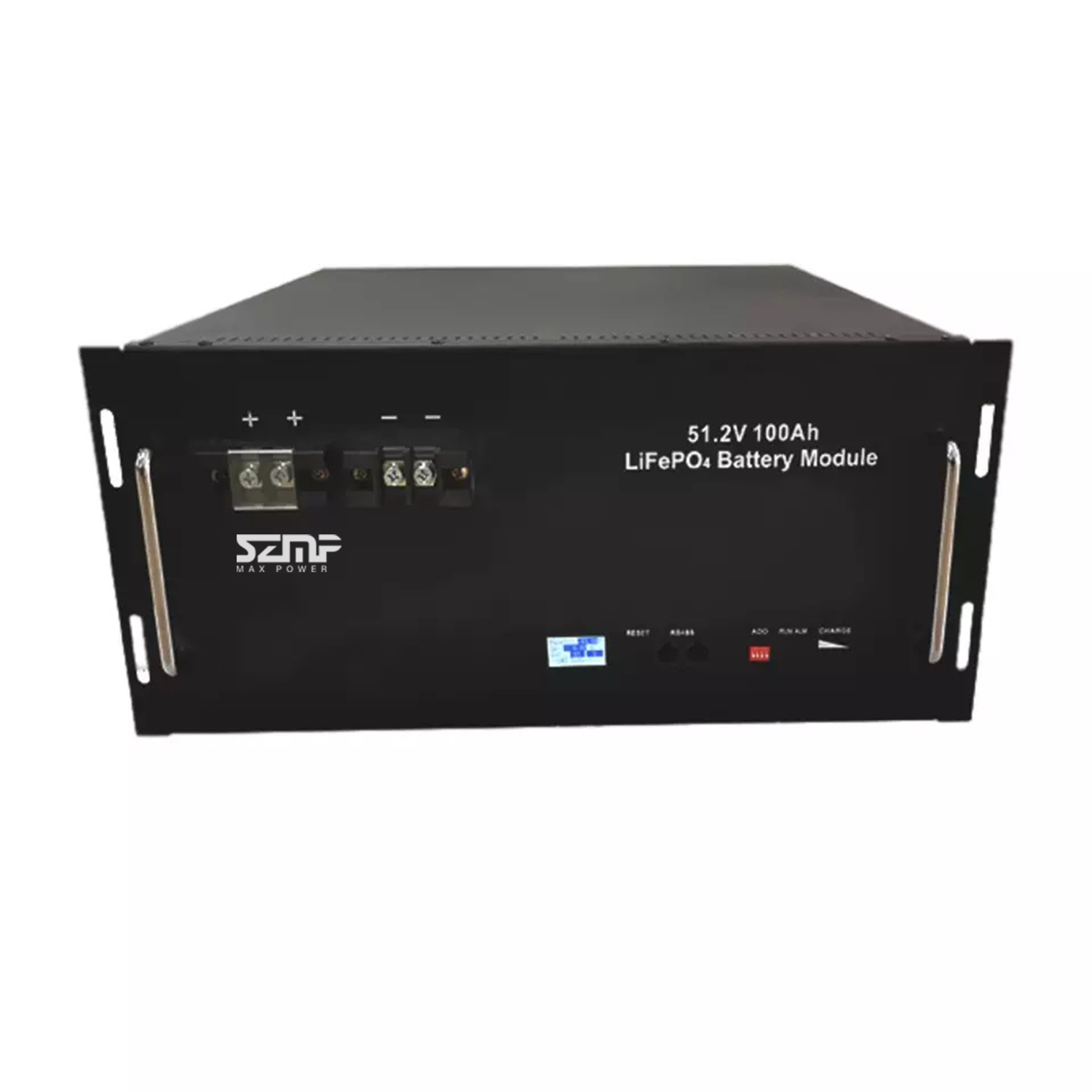

51.2V100AH

Golf cart lithium battery 51.2V100Ah battery pack rechargeable lithium batteries solar wallmount
Key Feature
Voltage : 51.2V
Capacity : 100Ah
Battery type : Rack Mounted Battery
Cycle life: 2000-6000 times
Warranty :2 Year
OEM :Available
Application :Home Appliances, Wind/Solar Energy Storage Systems,Telecommunication ,UPS Data Center ,boat
Cell Brand :Chinese famous brand ,Samsung,LG,Sanyo,Panasonic etc.
Certification:ISO9001,CE, ROSH,UN38.3,CNAS,MSDS,KC
Features and advantage
  • 1. Safety: telecom base station lifepo4 battery, built-in BMS, no fire, none explosive

  • 2. Clean and green energy, does not contain toxic material

  • 3. Powerful

  • 4. Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.

  • 5. No memory effect, highly efficient charging at any time

  • 6. Wide operating temperature: -10 ~ 55 ° C

  • 7. Small size and light weight.

  • 8. Low self-discharge rate: <3% monthly

  • 9. With individual package, clear warning mark, logo. Instruction manual printed in colors

Specification


Sectricai Characteristics
Nominal Voltage
51.2V
51.2V
51.2V
Nominal Capacity
100AH
200AH
300 Ah
Energy
5210Wh
10420Wh
15630Wh
Internal Resistance
≤500mΩ
≤500mΩ
≤500mΩ
Cycle Life
4000~6000 cycles,25℃
4000~6000 cycles,25℃
4000-6000 cycles @1C 100%DOD
Months Seif Discharge
<1%
<1%
<1%
Efficiency of Charge
100%@0.5C
100%@0.5C
100% @0.5C
Efficiency of Discharge
9&-99% @1C
9&-99% @1C
9&-99% @1C


Standard Charge
Charge Voltage
58.4±0.2V
58.4±0.2V
58.4±0.2V
Charge Mode
0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV)
0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV)
0.2C to 58.4V, then 58.4,charge current 0.02C(CC/CV)
Charger Current
20A
20A
20A
Max. Charge Current
50A
50A
50A
Charge Cut-off Voltage
59.5±0.2V
59.5v ±0.2V
59.5±0.2V


Standard Discharge
Continuous Current
100A
100A
100A
Max. Pulse Current
150A
150A
150A
Discharge Cut-off Voltage
37.5V
37.5V
37.5V


Environmental
Charge Temperature
0 ℃ to 45 ℃ (32F to 113F) @60±25% RelativeHumidity
0 ℃ to 45 ℃ (32F to 113F) @60±25% RelativeHumidity
0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity
Discharge lemperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
Storage Temperature
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
-20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity
0 ℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity
Water Dust Resistance
Ip56
IP56
Ip56

Cell methods
13161227-3.2V50AH-16S2P
13161227-3.2V50AH-16S4P
13161227-3.2V50AH-16S6P


Mediancal
Plastic Case
6U standard case
6U standard case
6U standard case
Dimensions (inJmm.)
482*430*222 mm
482*500*270 mm
482*570*270 mm
Weight (lbs./kg.)
47Kg
80kg
112Kg
Terminal
100A Through terminal
100A Through terminal
100A Through terminal

BMS
RS232,RS485,CAN
RS232, RS485, CAN
RS232, RS485 CAN
