48V100AH

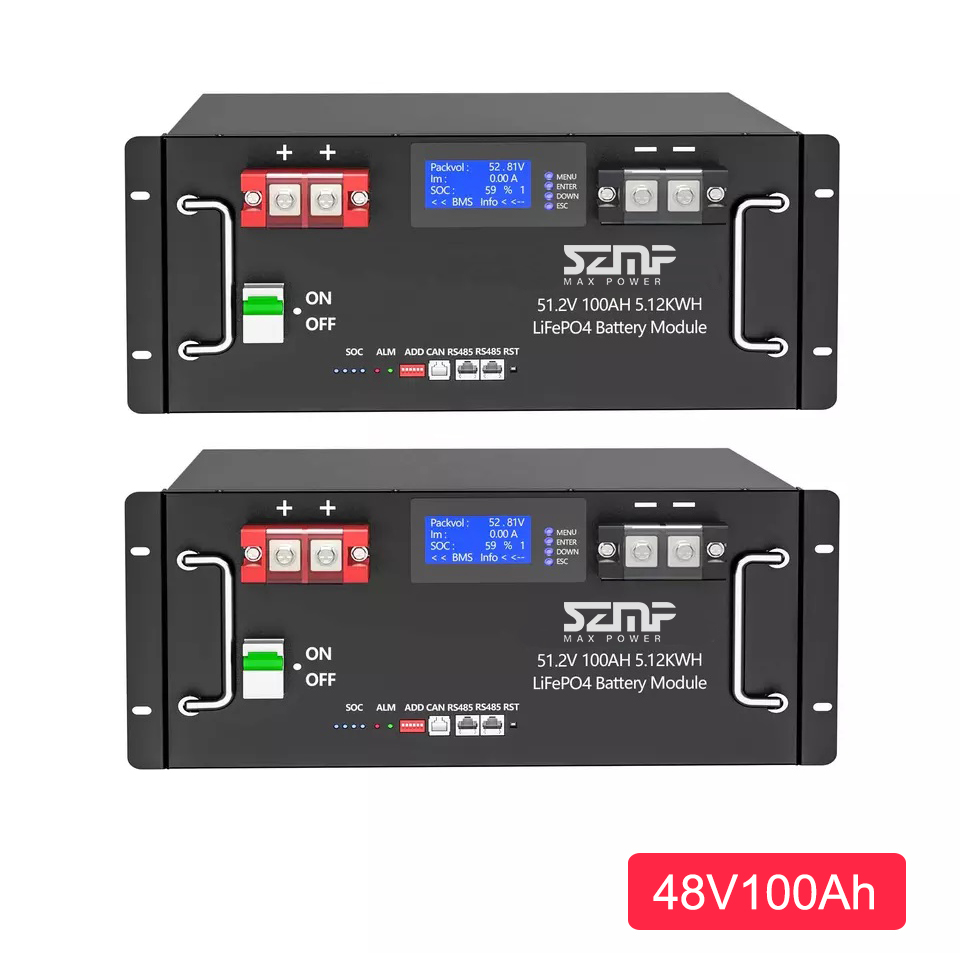

5kw Off grid Solar LiFePO4 Battery 48V100Ah Rack Mounted and Wall mounted for home storage
Key Feature
Voltage ： 48V
Capacity ： 100Ah
Battery type : Rack Mounted Battery
Cycle life： 2000-6000 times
Warranty ：2 Year
OEM ：Available
Application ：Home Appliances, Wind/Solar Energy Storage Systems，Telecommunication ,UPS Data Center ,boat
Cell Brand ：Chinese famous brand ,Samsung，LG，Sanyo，Panasonic etc.
Certification：ISO9001，CE， ROSH，UN38.3，CNAS，MSDS,KC
Features and advantage

  • 1. Safety: telecom base station lifepo4 battery, built-in BMS, no fire, none explosive

  • 2. Clean and green energy, does not contain toxic material

  • 3. Powerful

  • 4. Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.

  • 5. No memory effect, highly efficient charging at any time

  • 6. Wide operating temperature: -10 ~ 55 ° C

  • 7. Small size and light weight.

  • 8. Low self-discharge rate: <3% monthly

  • 9. With individual package, clear warning mark, logo. Instruction manual printed in colors

Specification

Model MP 48V50AH MP 48V100AH MP 48V150AH MP 48V200AH
Capacity 2.4KWH 4.8KWH 7.2KWH 9.6KWH
Normal Discharge Current 50A 100A 150A 200A
Max Discharge Current 50A 100A 150A 200A
Working Voltage 37.5-54V 37.5-54V 37.5-54V 37.5-54V
Standard Voltage 48V 48V 48V 48V
Max Charging Current 50A 100A 150A 200A
Max Charging Voltage 54V 54V 54V 54V
Circle Times >2500 times >2500 times >2500 times >2500 times
Installation Caninet or wall installation Caninet or wall installation Caninet or wall installation Caninet or wall installation
Suggested DOD 90% 90% 90% 90%
Monitor WIFI WIFI WIFI WIFI
Size(mm) 484*410*88.5 484*410*171 580*470*248 484*590*178
Weight 24.5kg 49kg 68kg 77kg
Humidity 20-60% 20-60% 20-60% 20-60%
Working Temperature -20℃-60℃ -20ºC-60ºC -20ºC-60ºC -20℃-60℃
IP Rating IP20 IP20 IP20 IP20
Warranty 3Yeras 3Yeras 3Yeras 3Yeras
Battery Protection Over-current/over voltage/short circuit/low voltage/high temperature Over-current/over voltage/short circuit/low voltage/high temperature Over-current/over voltage/short circuit/low voltage/high temperature Over-current/over voltage/short circuit/low voltage/high temperature

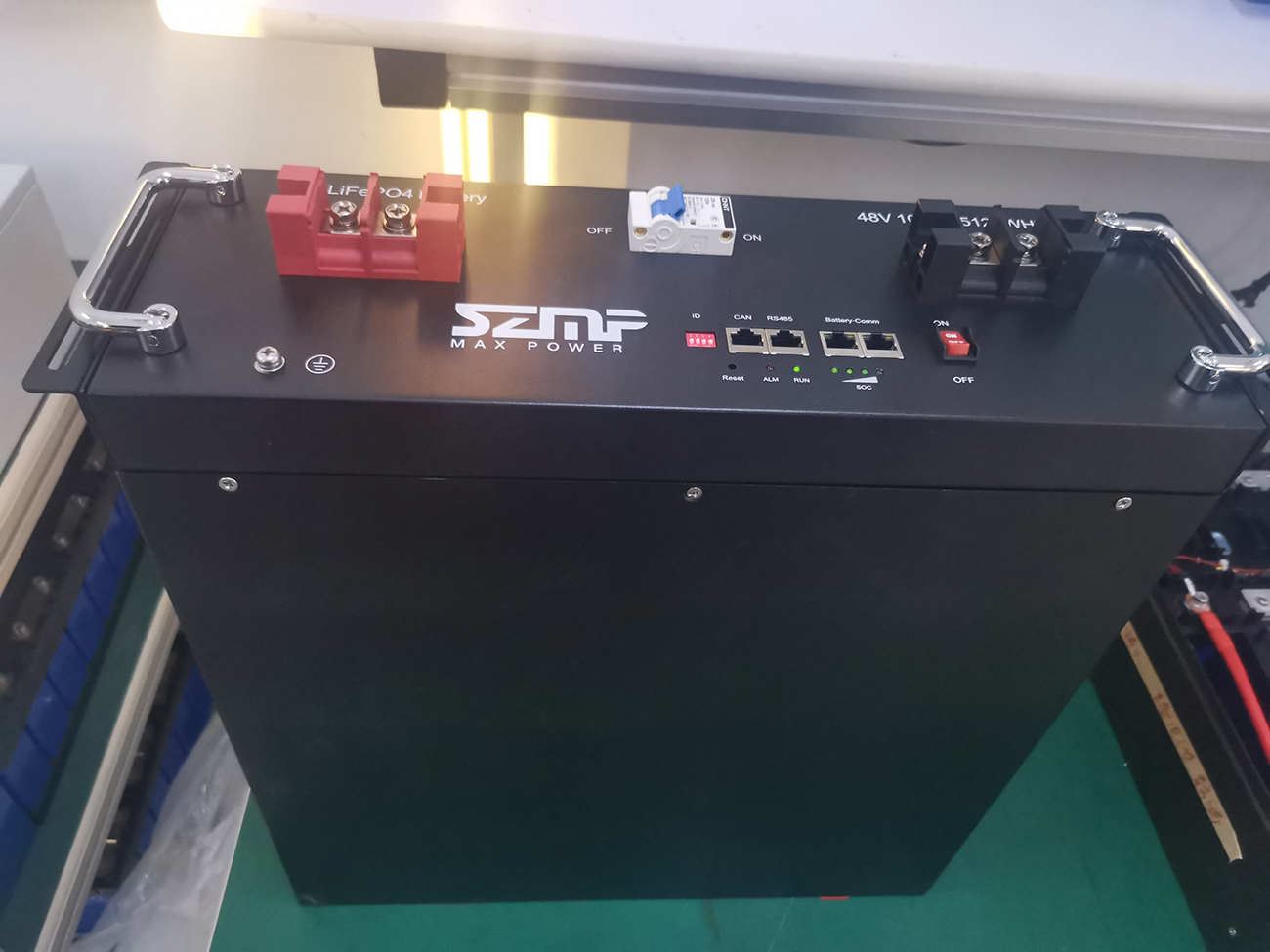

Product details

​Application

Certificate

Logistics
