1. Safety: telecom base station lifepo4 battery, built-in BMS、Inverter, no fire, none explosive.
2. Clean and green energy, does not contain toxic material.
3. designed for household electricity use, with easy assembly to meet typical household power needs.
4. Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.
5. No memory effect, highly efficient charging at any time.
6. Wide operating temperature: -10 ~ 55 ° C.

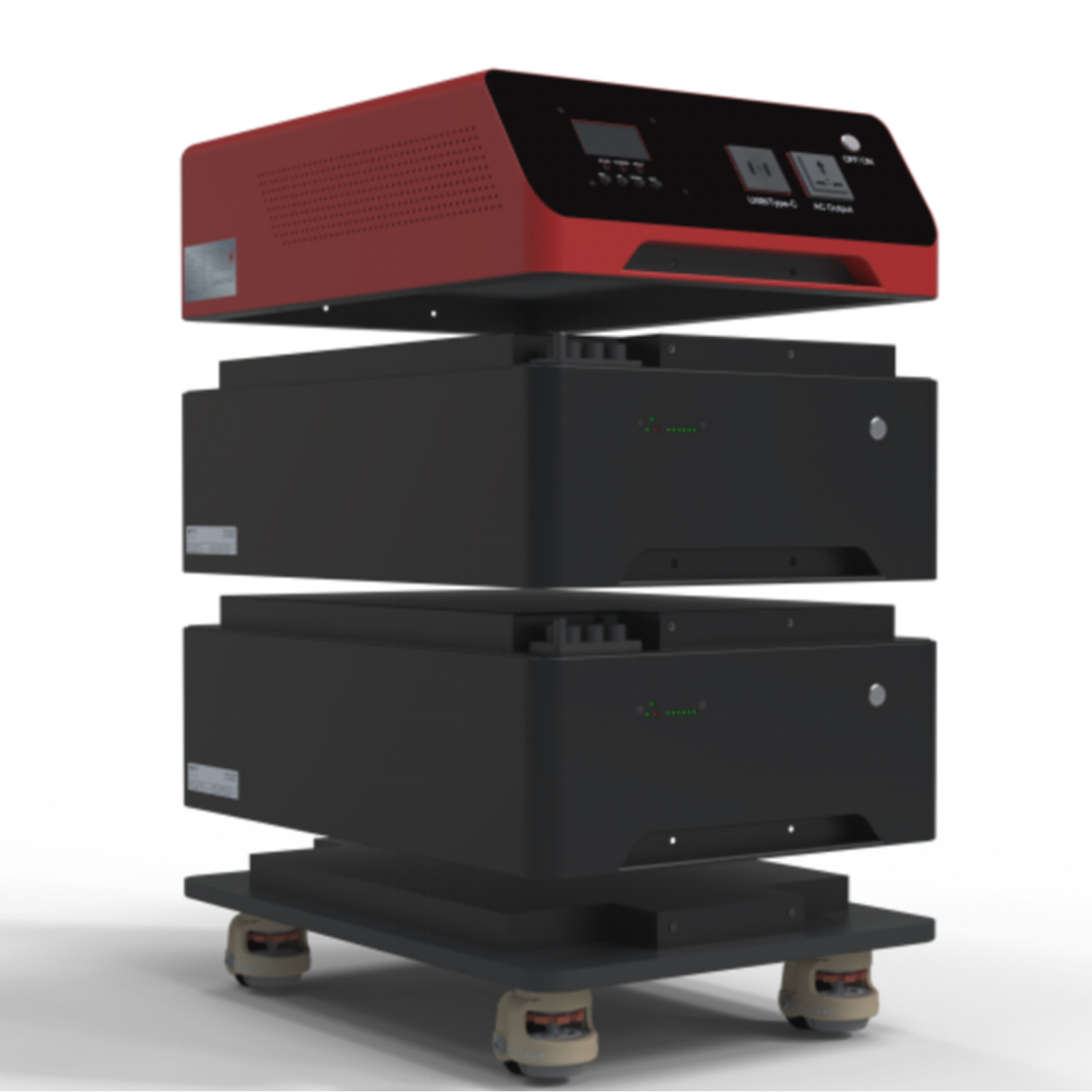

7. The integrated 51.2V low-voltage stacked system employs imported chips, multiple protections, and ultra-high precision real-time monitoring.
8. SOC accuracy is optimized, with SOC error within 3%, based on extensive testing data.
9. Communication protocols include RS485/CAN/RS232/UART and Bluetooth.
10. With individual package, clear warning mark, logo. Instruction manual printed in colors.

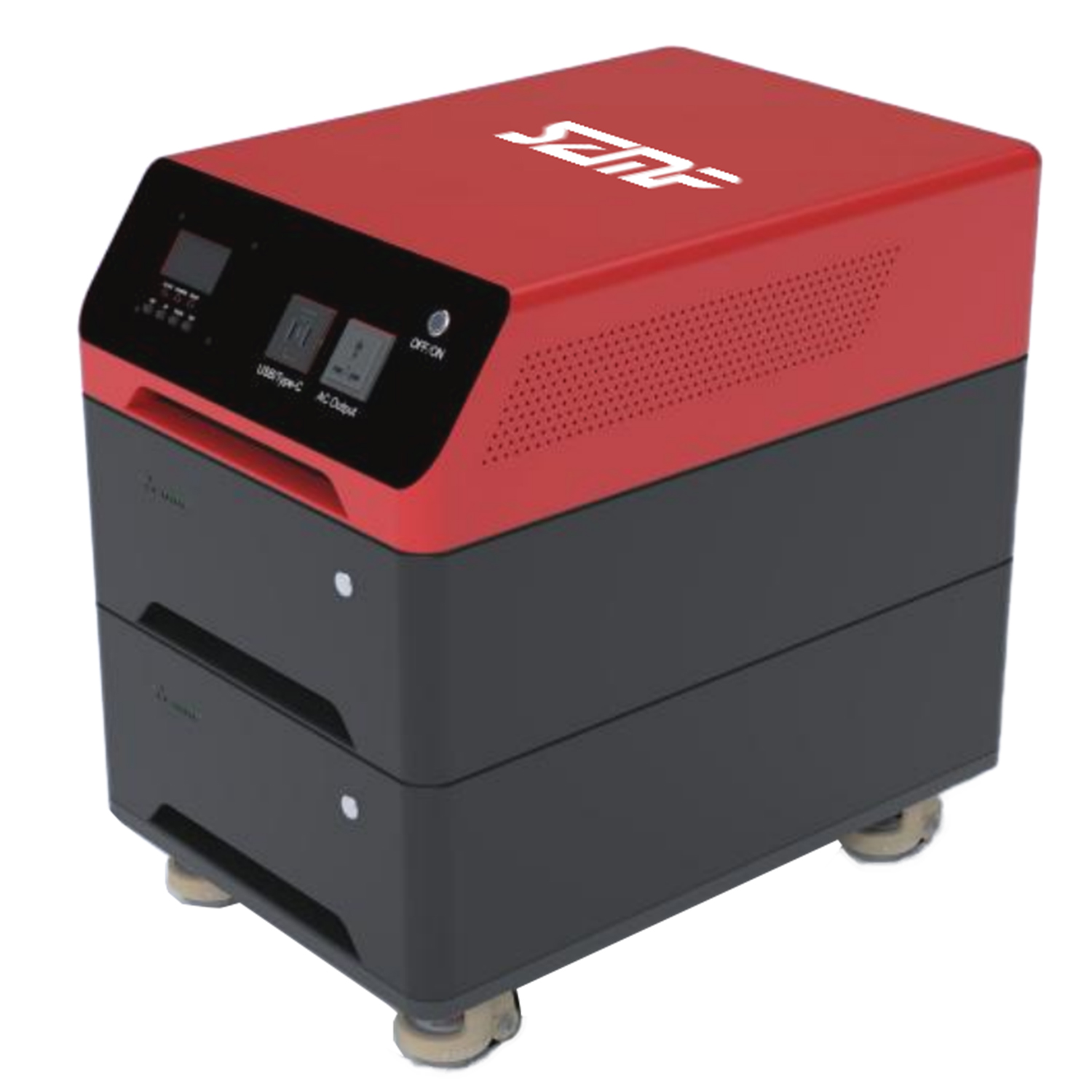

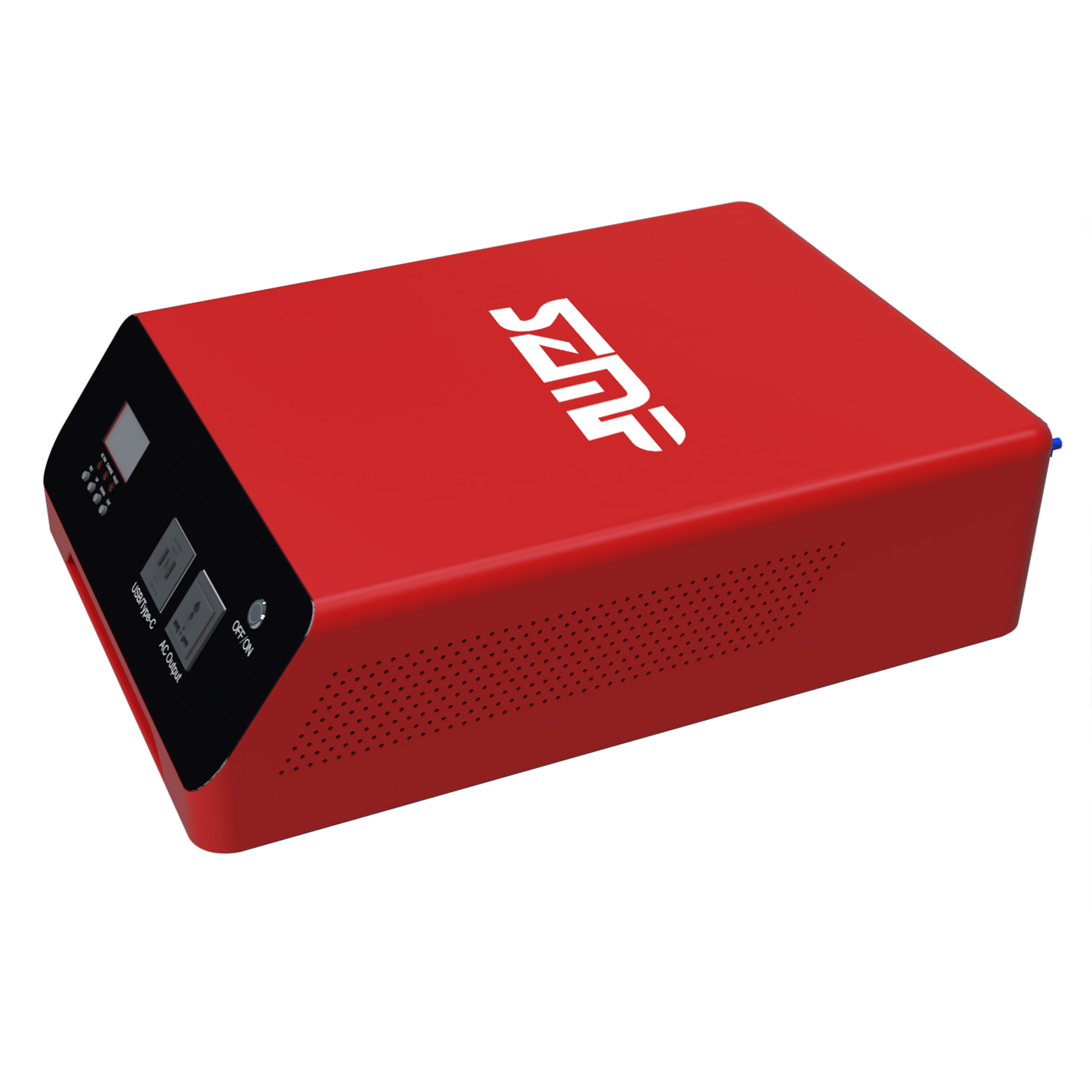

Solar Energy Storage Inverter Control All-in One
|
Inverter |
5Kw |
|
Output Voltage |
230Vac |
|
Frequency(mains) |
50Hz ± 0.3Hz/60Hz ± 0.3Hz |
|
Maximum Charging Current(mains) |
60A（DC） |
|
Charging Voltage Range(mains) |
40-60V（DC） |
|
Maximum Charging Current(PV) |
0-80A |
|
Charging Voltage Range(PV) |
120-500V（DC） |
|
Communication Connect Port |
RS485 CAN |

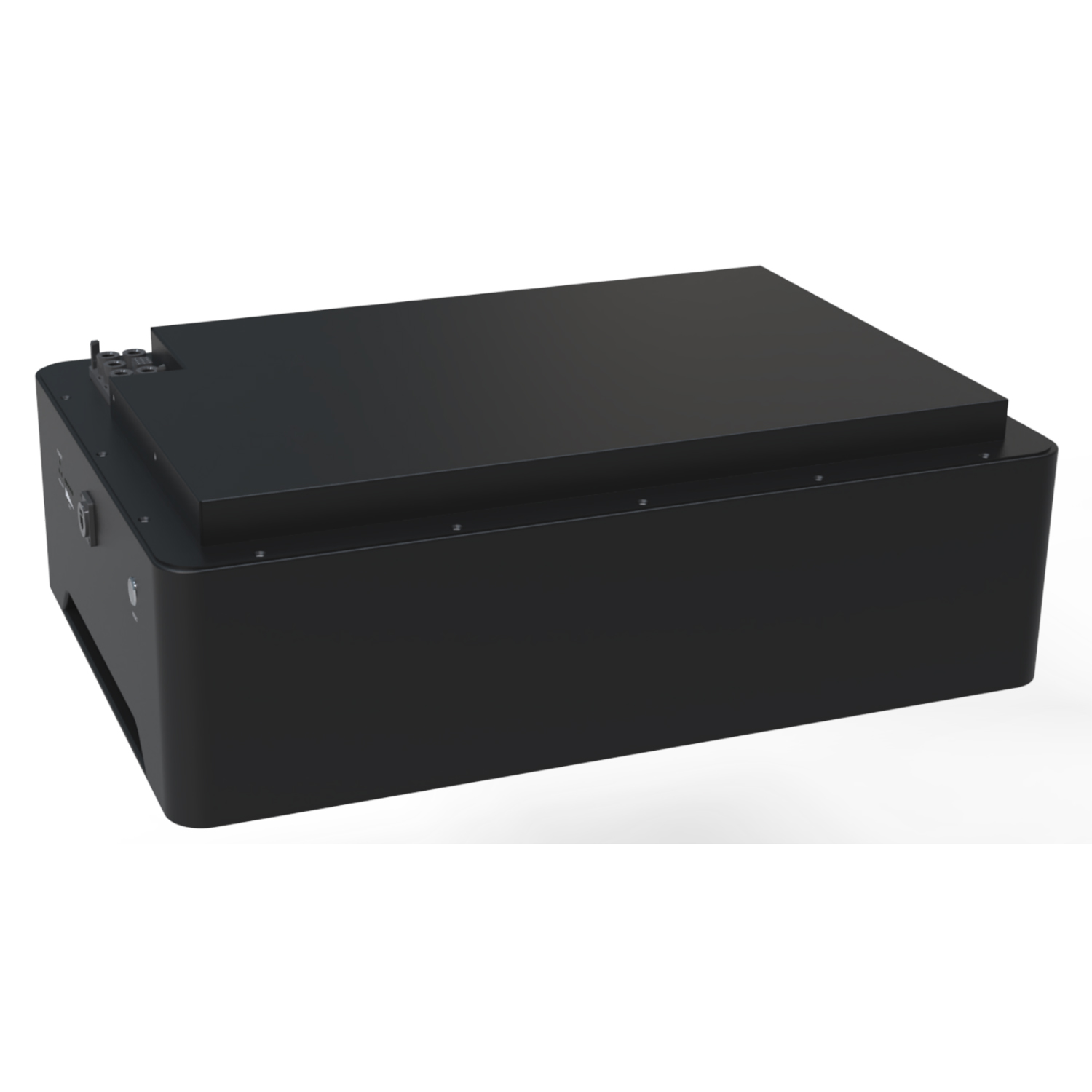

51.2V100Ah Battery pack*2
|
Pack configuration |
16S/1P Two sets in parallel |
||
|
Cell Model |
IF48173115-100AH（A-安驰电芯） |
||
|
Charge Voltage |
58.4V(3.65V/Cell) |
||
|
Discharge cut-off Voltage |
40V(2.5V/Cell) |
||
|
Nominal Voltage |
51.2V(3.2V/Cell) |
||
|
Minimum Capacity |
100Ah @ 0.5C discharge |
||
|
Nominal Capacity |
100Ah @ 0.5C discharge |
||
|
Nominal Energy |
10240Wh @ 0.5C discharge |
||
|
Max Charge Current |
100A |
||
|
Max Cont Discharge Current |
100A |
||
|
Standard Charge |
0.5C constant current to 58.4V, CV to taper current£0.05C（25℃±2） |
||
|
Standard Discharge |
0.5C constant current to44V（25℃±2） |
||
|
Pack Weight |
Appr 115Kg |
||
|
Communication protocol |
RS485/RS232，Bluetooth enabled(Android)，Auto DIP Switch |
||
|
Number of cycles |
≥4000（25℃0.5C80%SOH） |
||
|
Shipment Voltage |
52.5~53V |
||
|
Operating Temperature |
Charge |
0°C ~55°C: standard charging method |
|
|
|
Discharge |
-20°C ~55°C |
|
|
Storage Temperature |
Temperaure |
Storage time |
SOC |
|
|
-10~30℃ |
≤6 months |
10%≤SOC≤60% |
|
|
30~45℃ |
≤3 months |
20%≤SOC≤60% |
|
|
45~60℃ |
≤1 months |
30%≤SOC≤60% |
