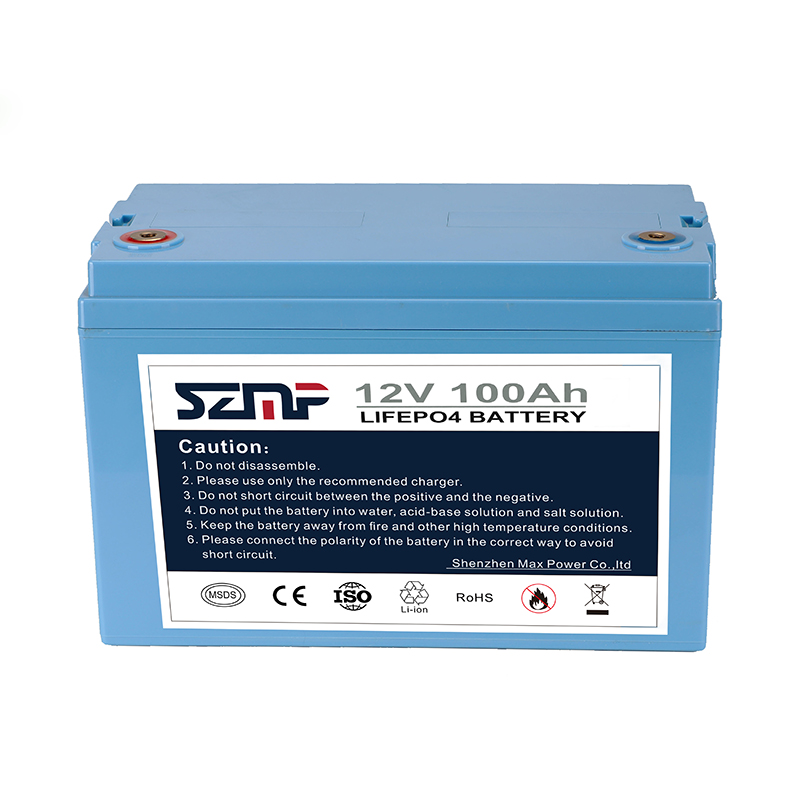

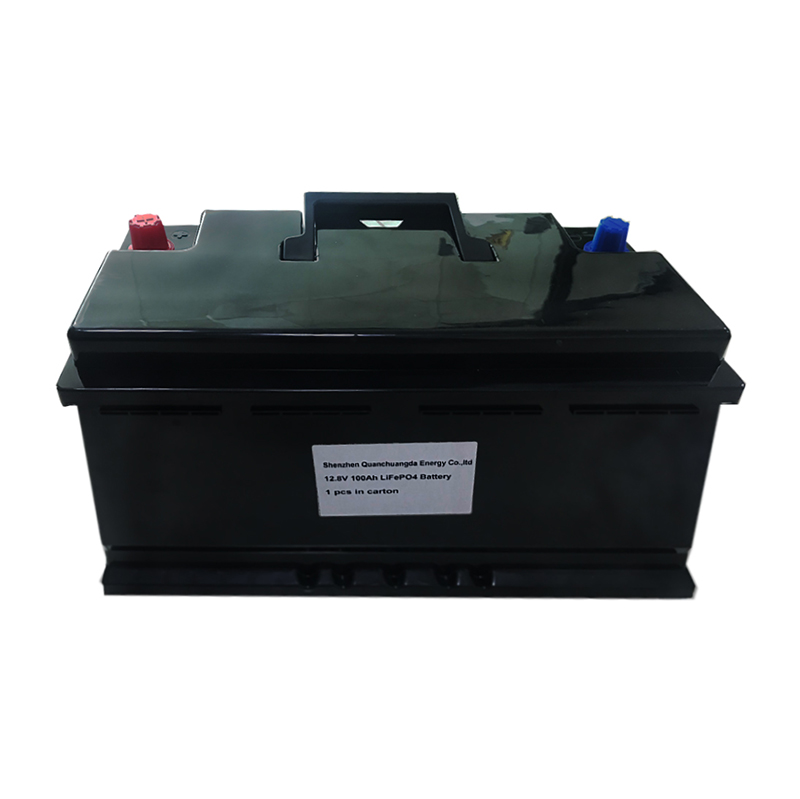

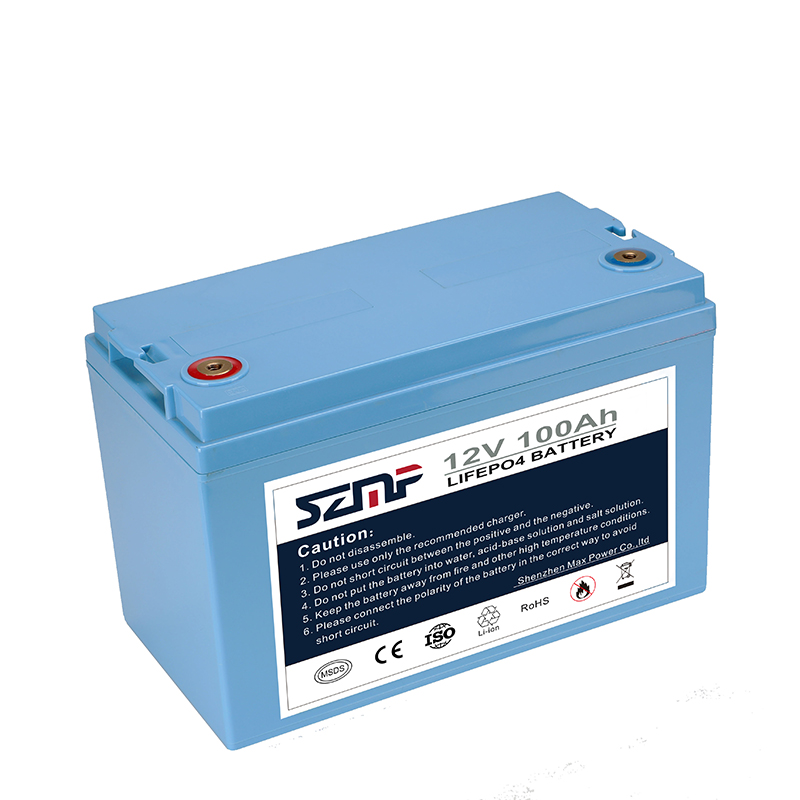

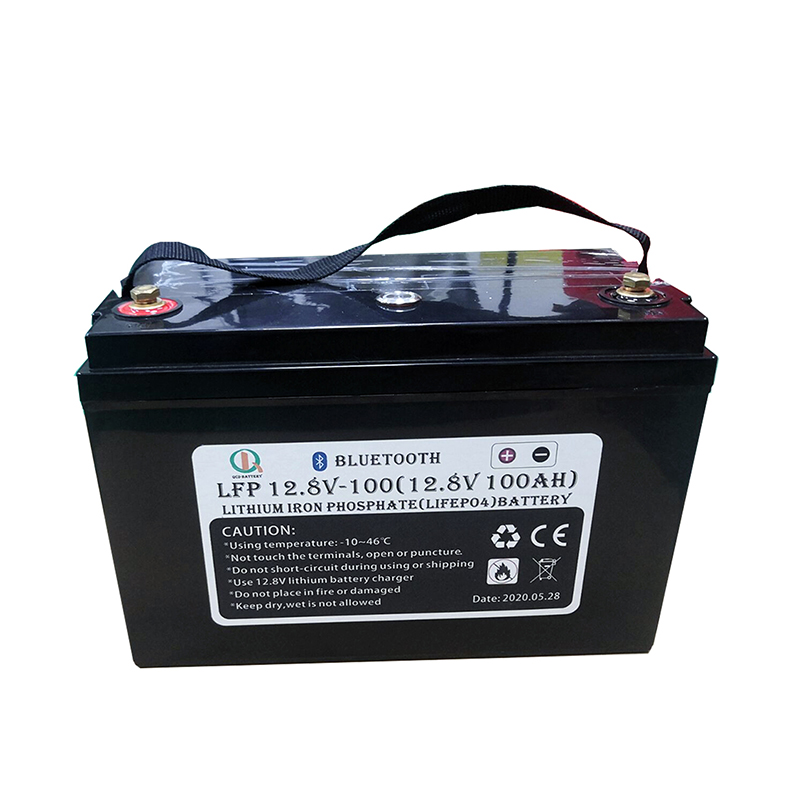

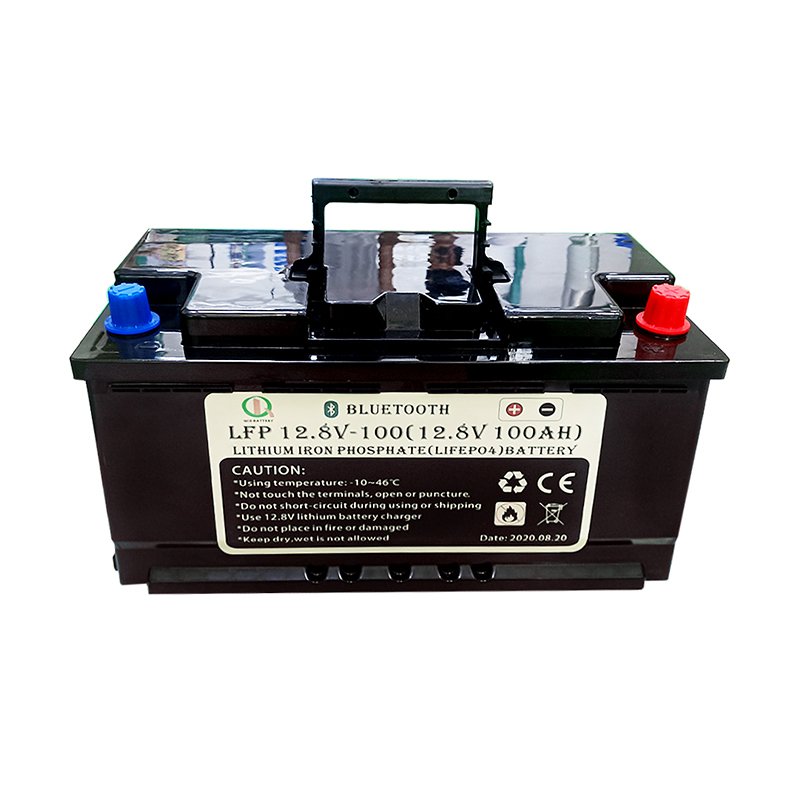

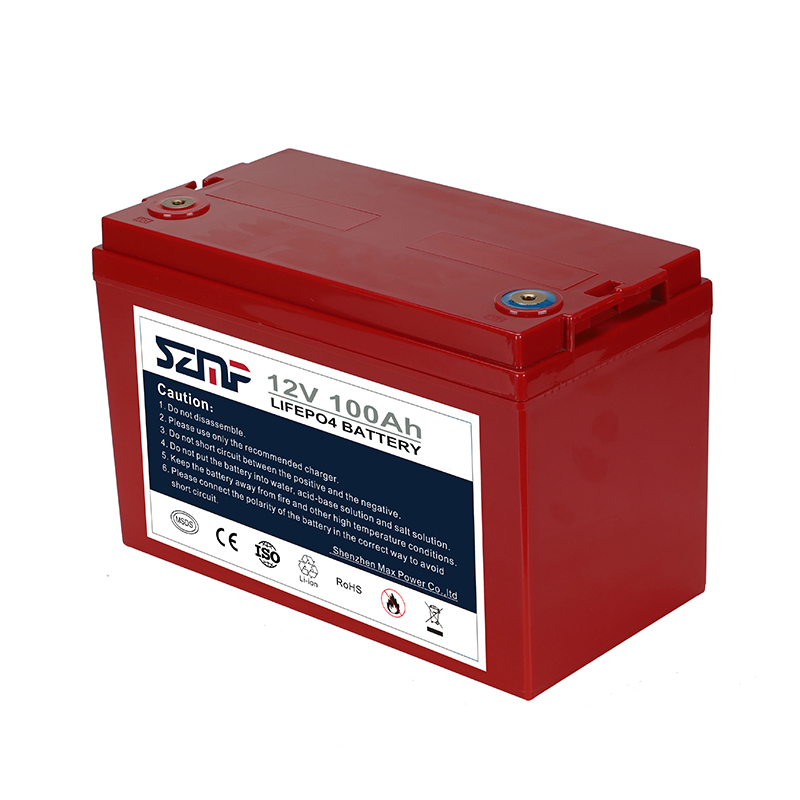

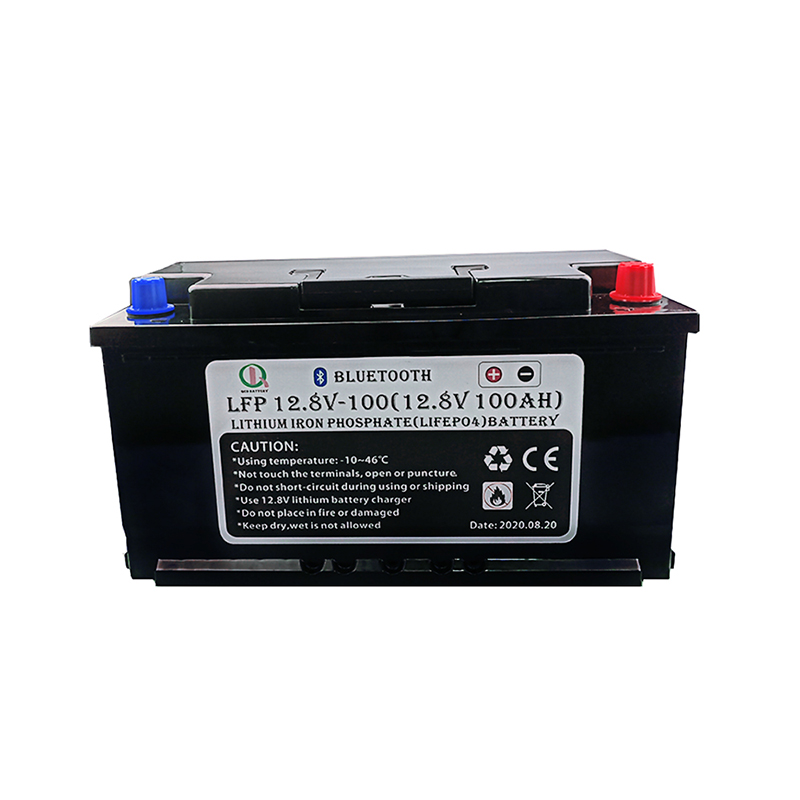

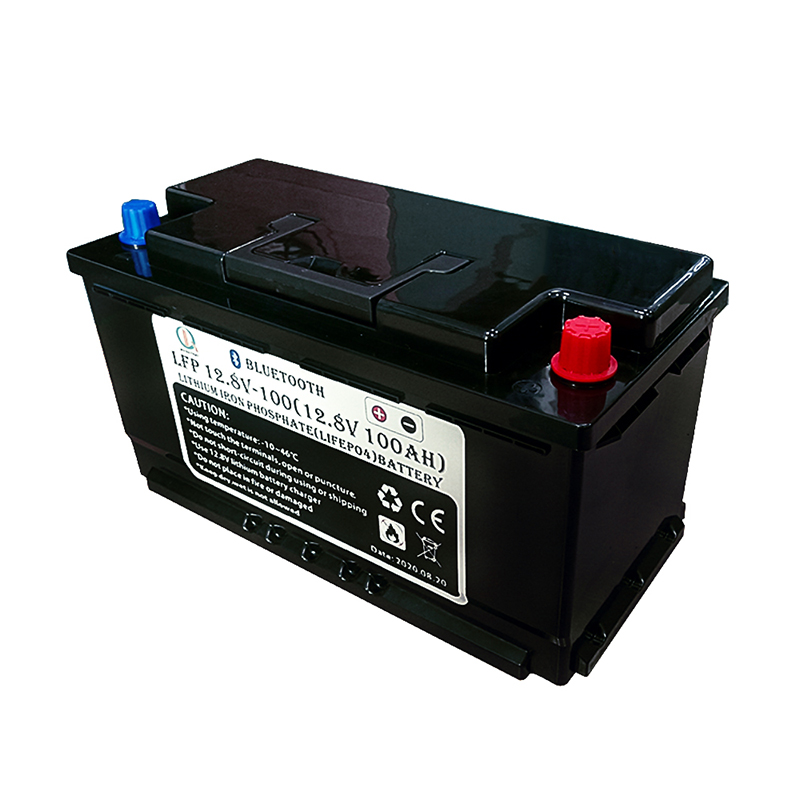

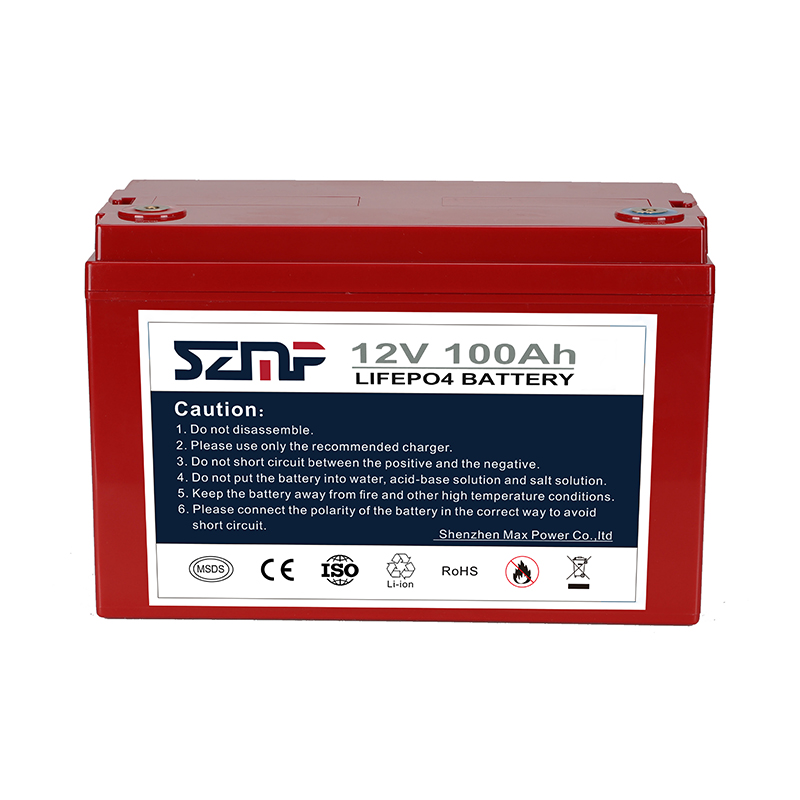

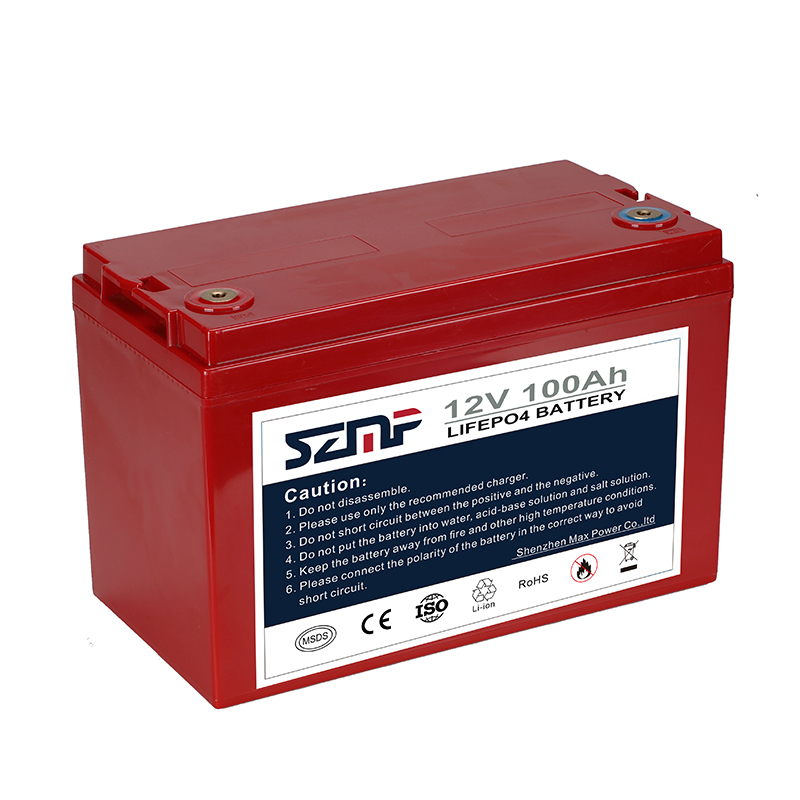

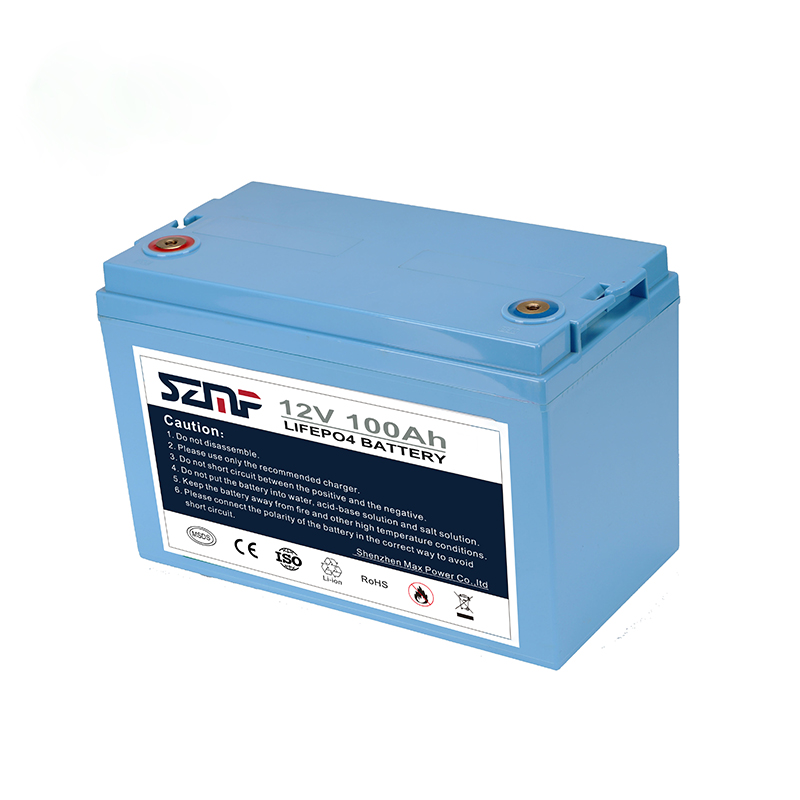

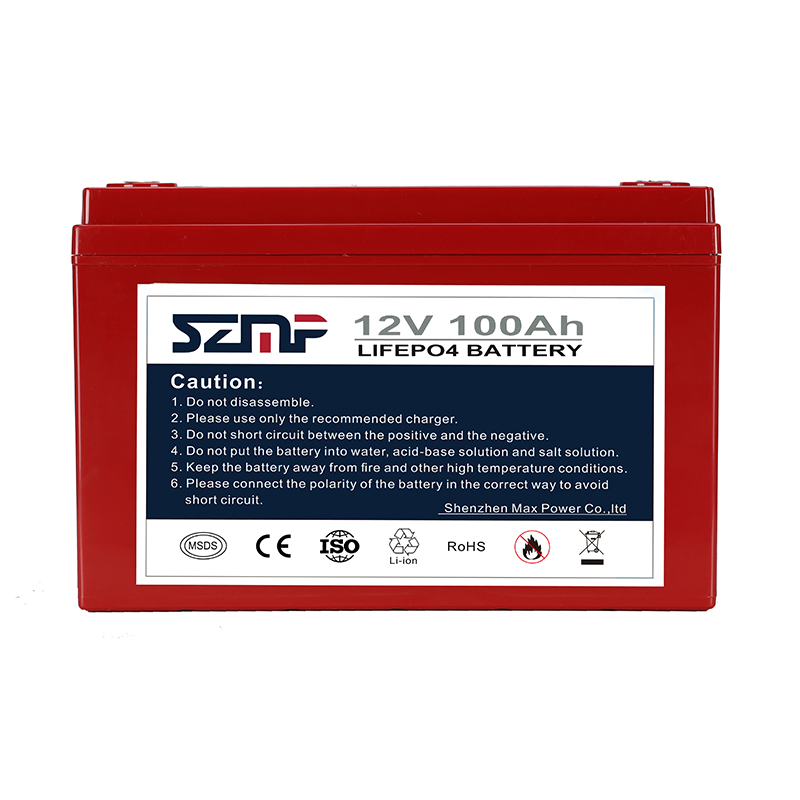

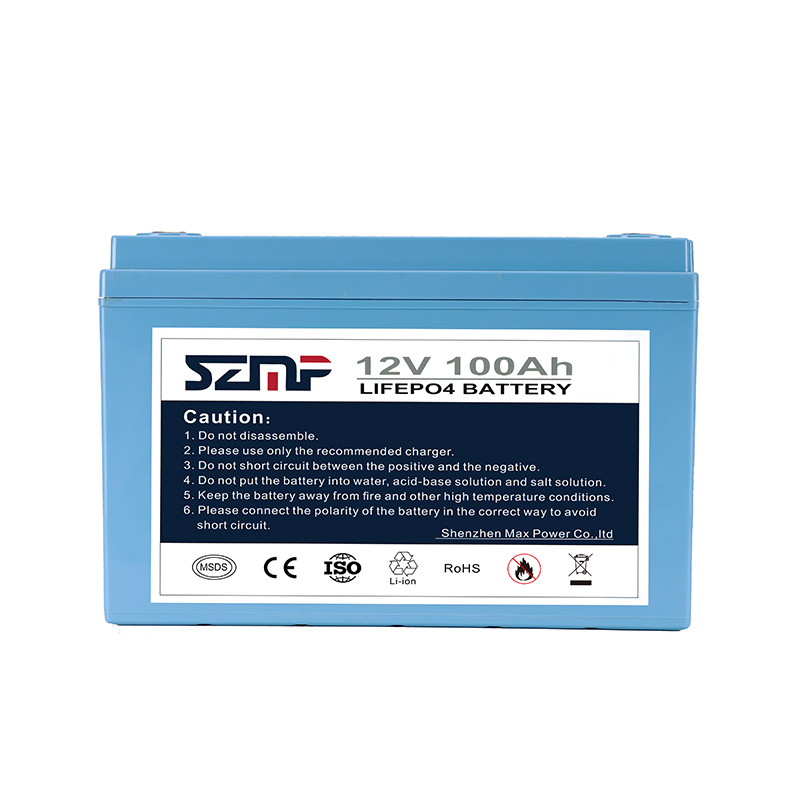

12V100A

12V100A
Key Feature
Nominal Voltage 11.1V
Nominal Capacity 100Ah (0.2C to8.4V at 25℃)
Power 1111Wh
(AC) Internal Resistance ≤200mΩ
Cycle life >500 cycles @0.2C 80%DOD
Month self-discharge <3%
Charge voltage 12.6±0.2V
Charge mode 0.2C to 12.6V, then12.6V,charge current to 0.02C (CC/CV)
Charge current 10-80A
Max charge current 100A
Charge cut-off voltage 12.6V±0.2V
Constant current 10-80A
Max constant current 100A
Discharge cut-off voltage 8.4V
Cell / Connection mode NCM100 3 S 1 P
Case 胶壳
Dimension(mm) 330*173*216
Weight(lbs./kg.) 10.5kg
Terminal M8铜端子
Communication Protocol (Optional) RS485/CAN2.0
Extend (Optional) LED/蓝牙
