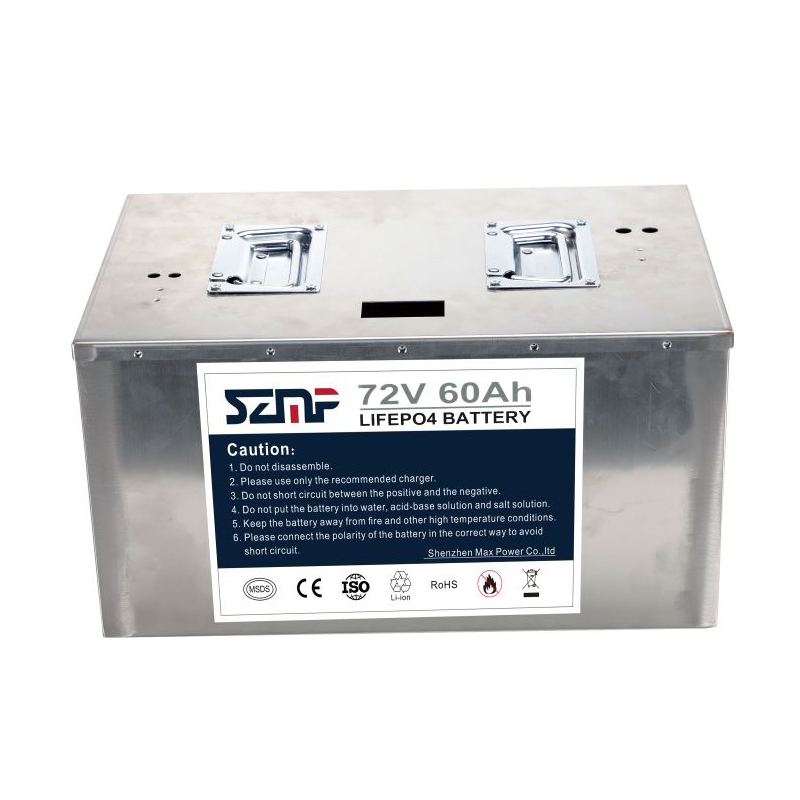

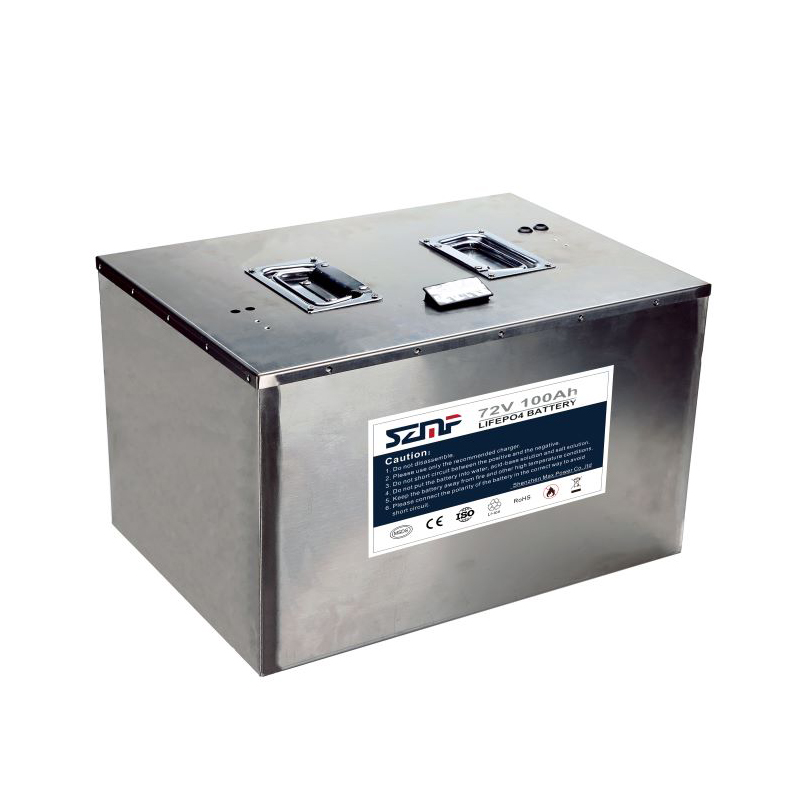

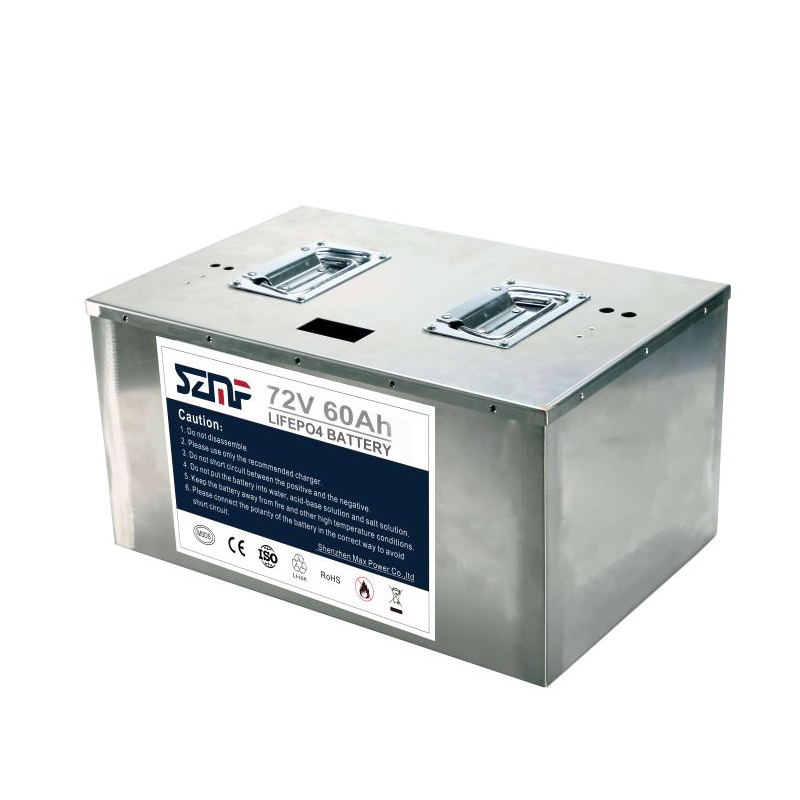

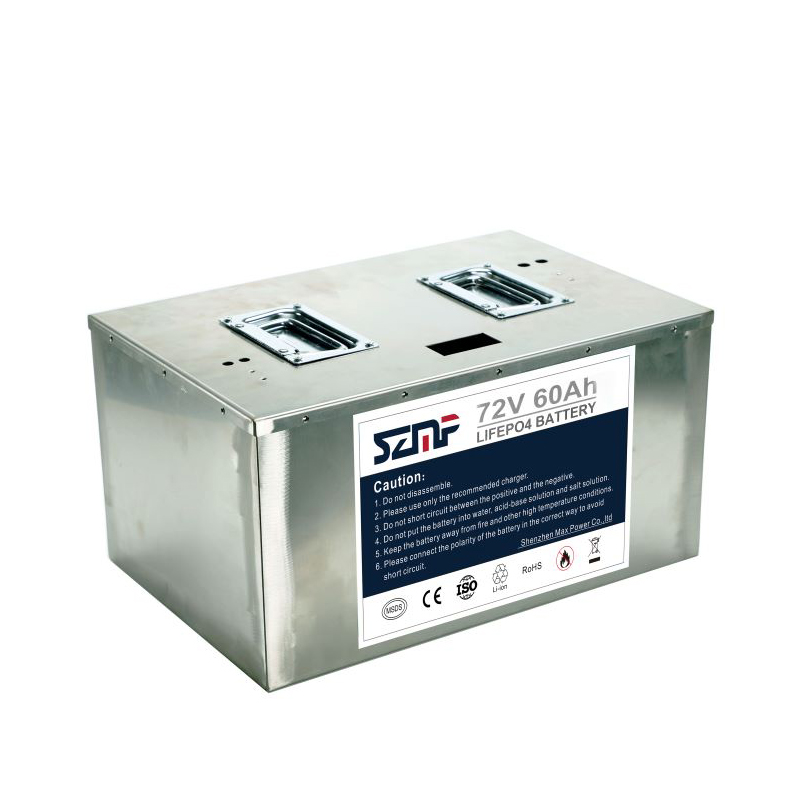

72V60-100

72V60-100
Key Feature
Nominal Voltage 72V
Nominal Capacity 60/100Ah (0.2C to45V at 25℃)
Power 2160/2880Wh
(AC) Internal Resistance ≤300mΩ
Cycle life >500 cycles @0.2C 80%DOD
Month self-discharge <3%
Charge voltage 84±0.2V
Charge mode 0.2C to 84V, then 84V,charge current to 0.02C (CC/CV)
Charge current 10-50A
Max charge current 60/100A
Charge cut-off voltage 84V±0.2V
Constant current 10-50A
Max constant current 60/100A
Discharge cut-off voltage 56V
Cell / Connection mode NCM 60/100 20 S 1 P
Case 不锈钢壳
Dimension(mm) 500*350*300
Weight(lbs./kg.) 62kg
Terminal 安德森120A/M8铜螺柱
Communication Protocol (Optional) RS485*2/CAN 2.0
Extend (Optional) LED Power display
