6V100AH

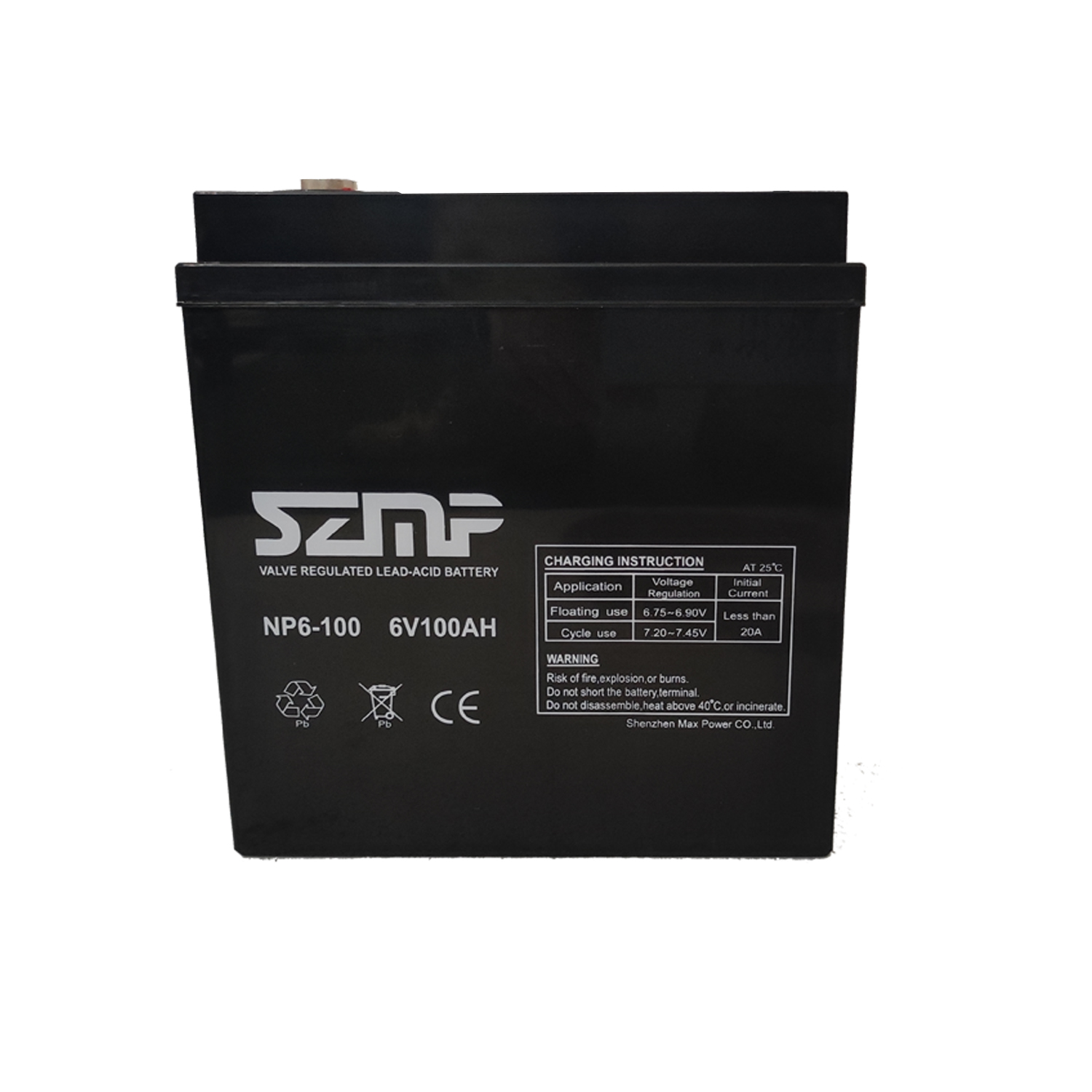

Lead Acid Battery 6v100ah For Computer Standby Power
Key Feature
Voltage : 6V
Capacity : 100AH
Battery type : lead acid battery
Cycle life: 800-1000 cycles
Warranty : 2 Year
OEM: Available
Application : Electric Powered Vehicles,Electric Powered Toys,Solar & Wind Power Storage,Power Station,Control System,Vacuum Cleaners,Medical Equipments,Goof Cars and Buggies,Wheel Chairs
Cell Brand : Max Power
Certiftcation:ISO9001CE, ROSH, UN38.3， CNAS, MSDS
Features
1. Safety: Lead Acid battery, no fire, none explosive
2. Clean and green energy, does not contain toxic material
3.Powerfull
4.Prolonged life cycle, after 800-1000 cycles, the residual capacity exceeds 80% of its original capacity.
5.No memory effect, highly efficient charging at any time
6. Wide operating temperature:-10~55°C
7. Low self-discharge rate:<3% monthly
8.With individual package, clear warning mark, logo. Instruction manual printed in colors
Specification
​ ​ ​ ​ ​ ​ ​ ​ ​

 Battery Model

NP 100-6  6V100AH

Designer Floating Life

Up to 3 Years

Capacity  (25℃)

20HR(0.2A,10.50V)

10HR(0.38A,10.50V)

5HR(0.68A,10.5V)

1HR(2.2A,10.5V)



105AH

90AH

80AH

65AH

Dimensions

Length

Width

Height

Total Height



214mm (8.43inch)

210mm （8.27inch)

195mm (7.68inch)

170mm (6.69inch)

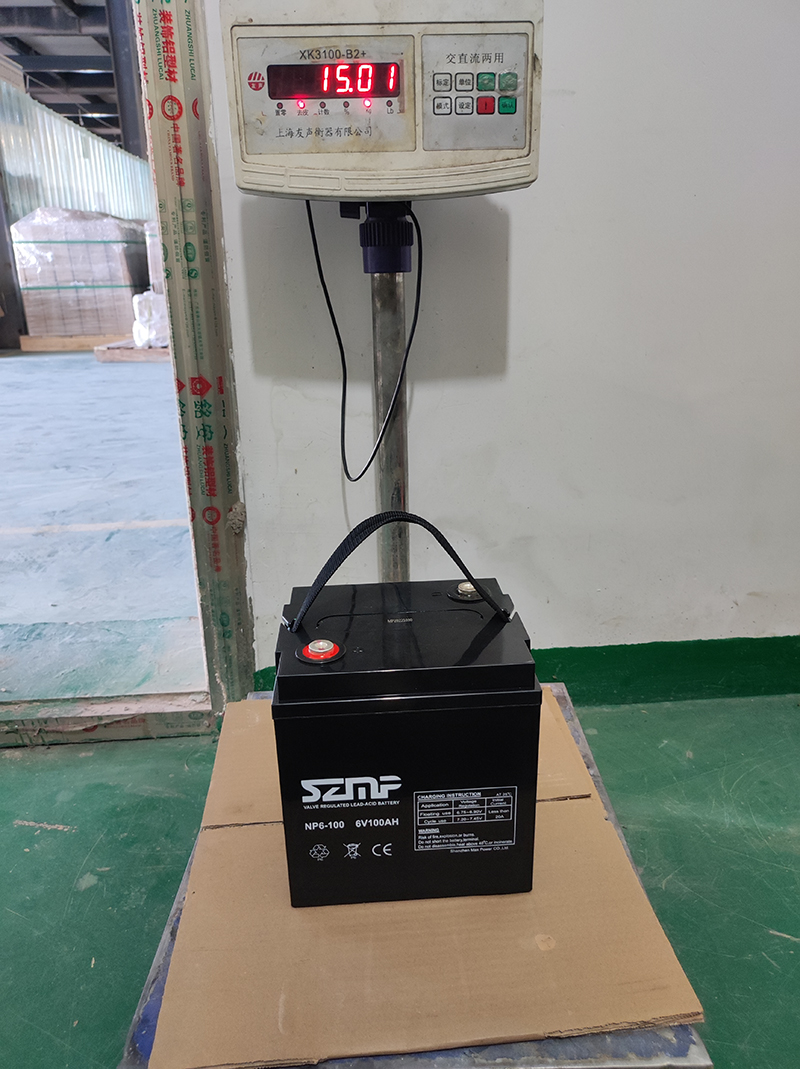

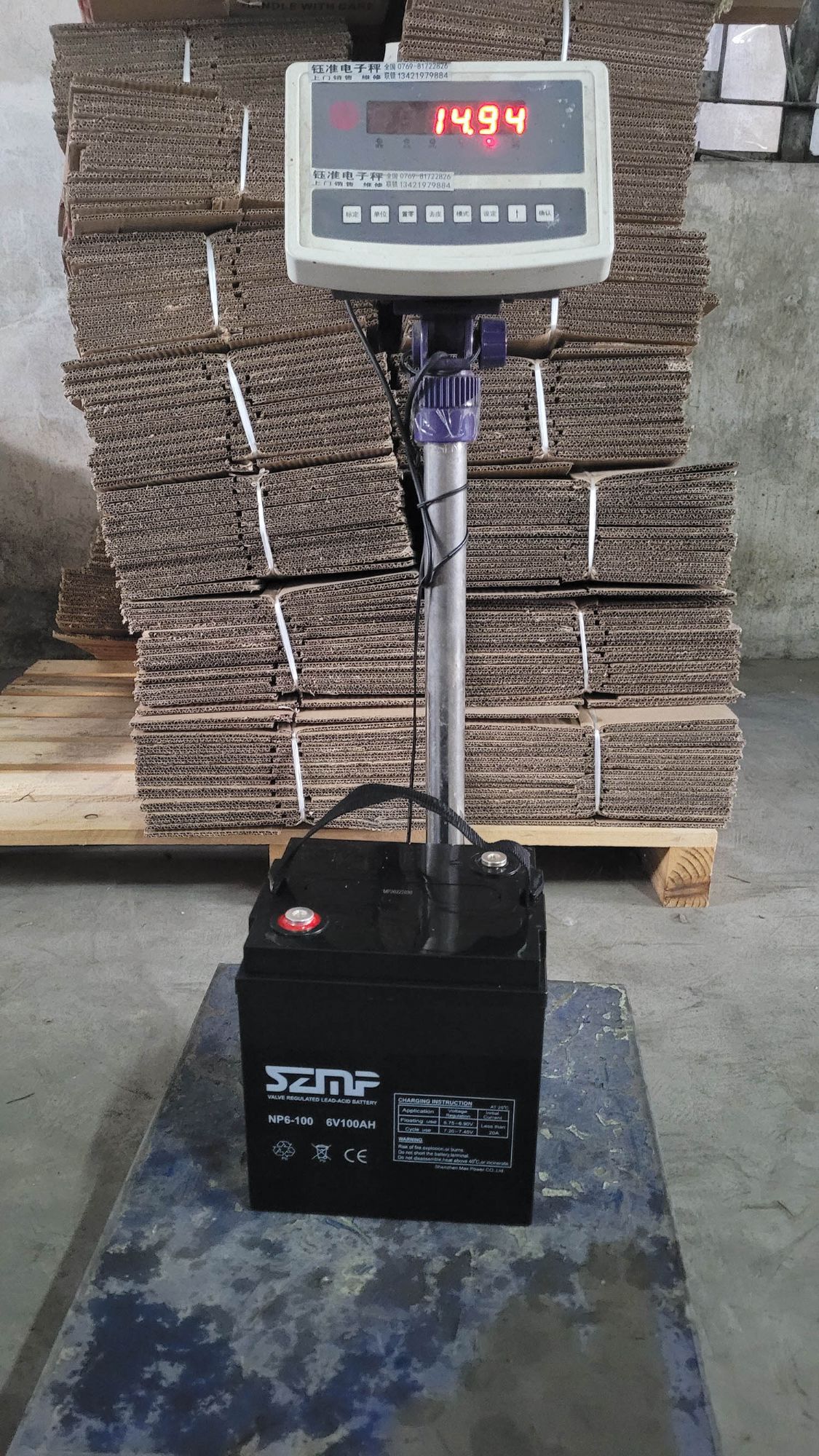

Approx. Weight

14Kg (30.87lbs)

Internal Resistance

Full charged at 25℃:≤ 3.5 mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃



102%

100%

88%

78%

Charge Voltage(25oC)

Cycle use

Float use



7.2-7.3V(-30mV/℃), max. Current: 25A

6.8-6.9V (-20mV/℃)

​​
Product details

  • Component ......Raw material
  • Positive ........Lead dioxide
  • Negative ........Lead
  • Container ........ABS
  • Cover ........ABS
  • Sealant ........Epoxy
  • Safety valve .... Rubber
  • Terminal ........Copper
  • Separator ........Fiber glass
  • Electrolyte ....... Sulfuric acid
