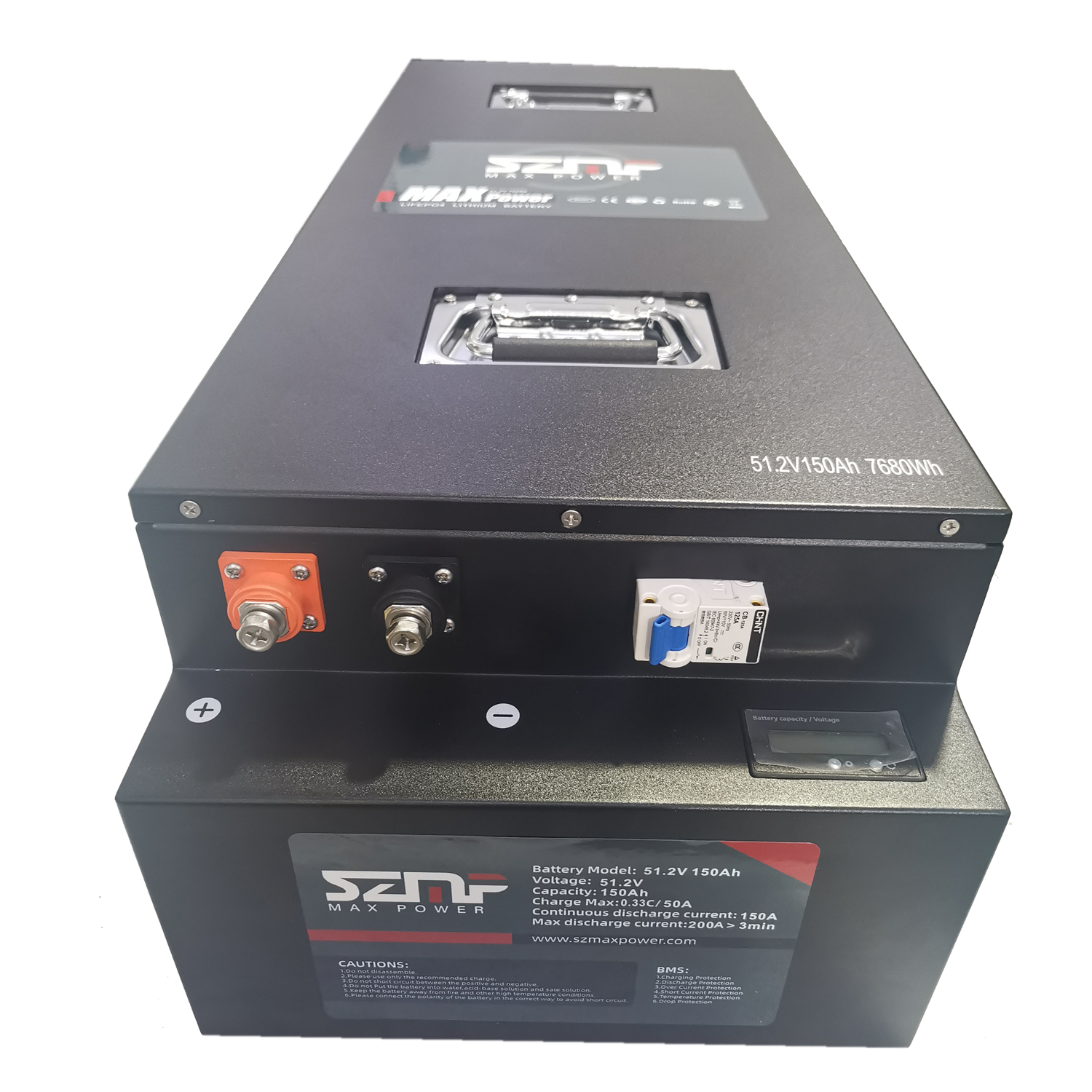

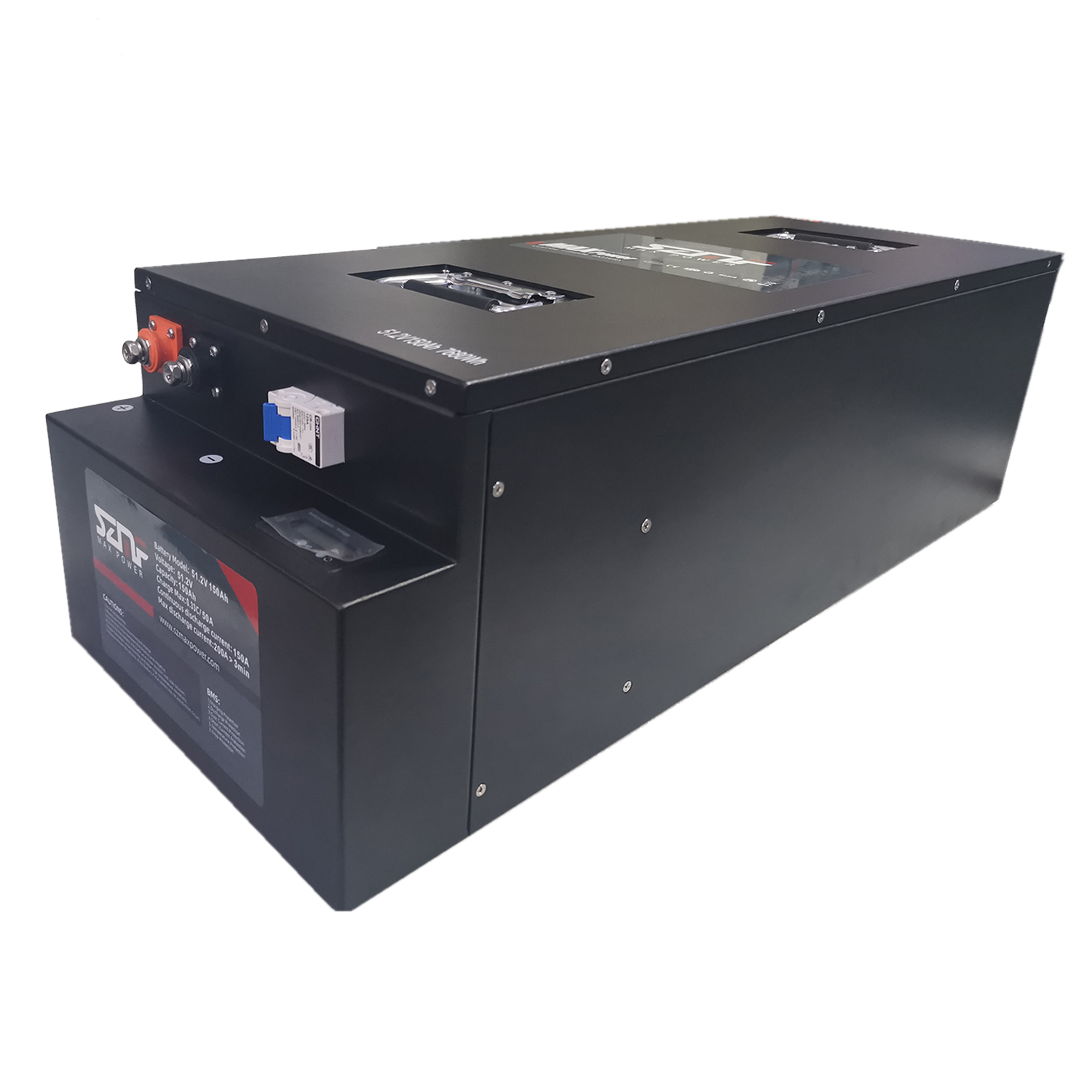

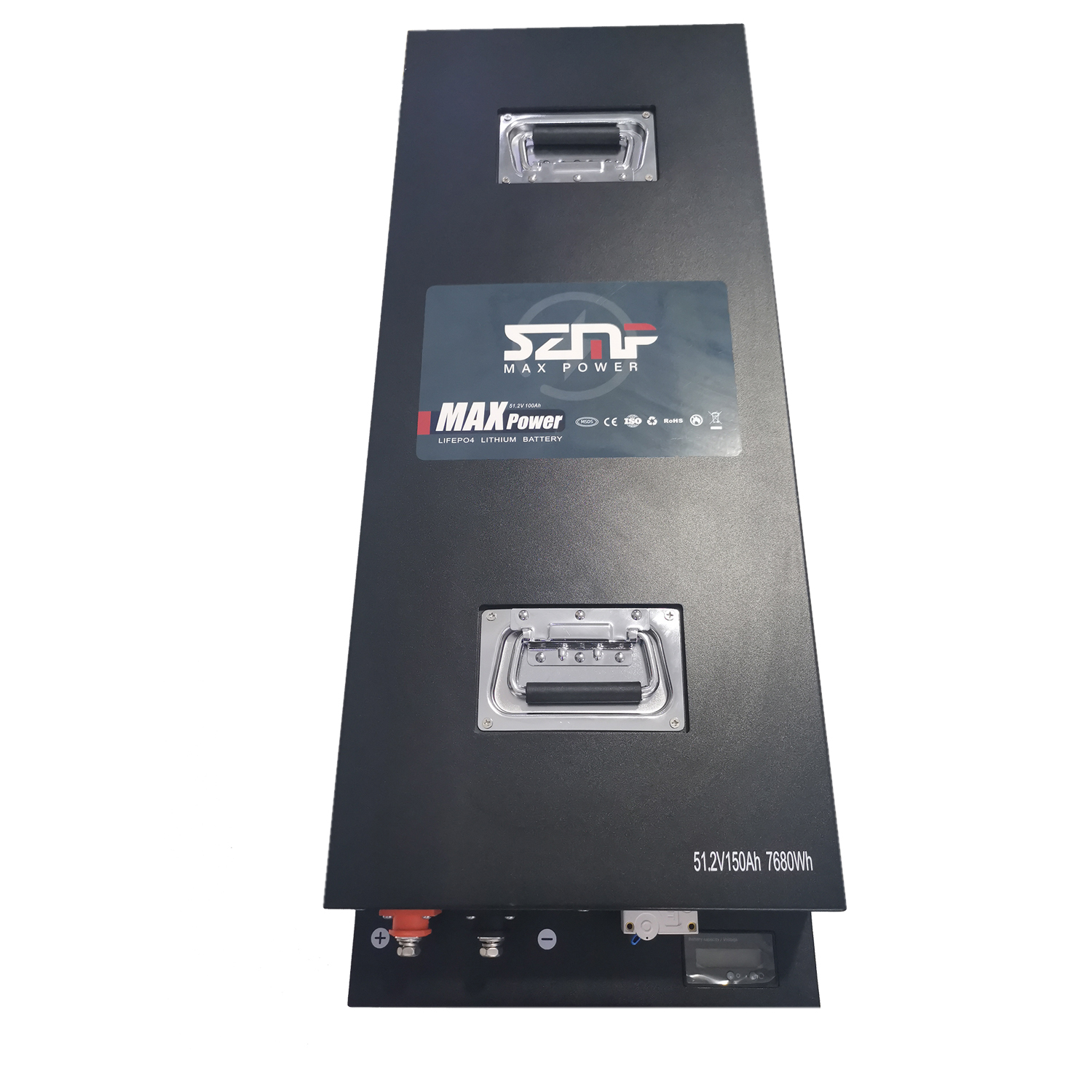

48V150AH

Customized golf cart lithium ion battery 48v 150ah for low-speed vehicles
Key Feature
Voltage : 48V
Capacity : 150Ah
Battery type :  Golf Cart Lifepo4 Battery
Cycle life: 2000times
Warranty :1 Year
OEM :Available
Application :Golf cart, Motor home and Caravan, Cameras and photographic equipment, Uninterruptible Power Supply
Cell Brand :CATL,BYD,EVE,CALB,SVOLT,LG,REPT,Gotion,ANC etc.
Certification:ISO9001,CE, ROSH,UN38.3,CNAS,MSDS,KC
Features and advantage
  •   1. Safety: telecom base station lifepo4 battery, built-in BMS, no fire, none explosive

  • 2. Clean and green energy, does not contain toxic material

  • 3. Powerful

  • 4. Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.

  • 5. No memory effect, highly efficient charging at any time

  • 6. Wide operating temperature: -10 ~ 55 ° C

  • 7. Small size and light weight.

  • 8. Low self-discharge rate: <3% monthly

  • 9. With individual package, clear warning mark, logo. Instruction manual printed in colors

  • 10. Max Power LiFePO4 Battery have high energy Density, Long cycle life,widely work temperature range and good safety performance, Mainly use in solar power system.wind power,and others energy storage power systems. UPS system, telecommunications system.As well as electric tools ,electric bicycles ,electric motorcycles,military equipment amd other fields.

Specification
Model/Parameters SZMP-LFP-48100
Rated Voltage 51.2V
Rated Capacity (0.2C@25) 150Ah
Rated Energy 7680Wh
Cell & Pack LiFePO4, Prismatic, Aluminum shell
Output voltage range 40.0V~57.6V
Charging voltage 56~56.8V, CC-CV
Cut-off voltage 40.0V
Internal Resistance 6.4
Max. Constant Charging current 150A
Recommended charging current <50A, best @ 30A
Recommended charging type CC-CV until current <0.02C
Max.Constant Discharging current 150A
AH Efficiency 99.4%
Mechanical
Case material Metal
Dimension L*W*Hmm& Terminal 780*300*237, M8
Weightkg 70±0.5
Environment
Humidity 5%~95% relative humidity
Charging temperature -10℃~+45℃
Discharging temperature -20~+65
Storage temperature -20~45
Service Life
Cycle life 80%DOD>4000 times@0.5C25
Design life >10 years
Product details


​​​Application
   * -Golf cart
 * -Motor home and Caravan
 * -Cameras and photographic equipment
 * -Portable measuring equipment
 * -Uninterruptible Power Supply
 * -Communications and electric equipment
 * -Emergency lighting equipment
Certificate

Logistics
