2V500AH

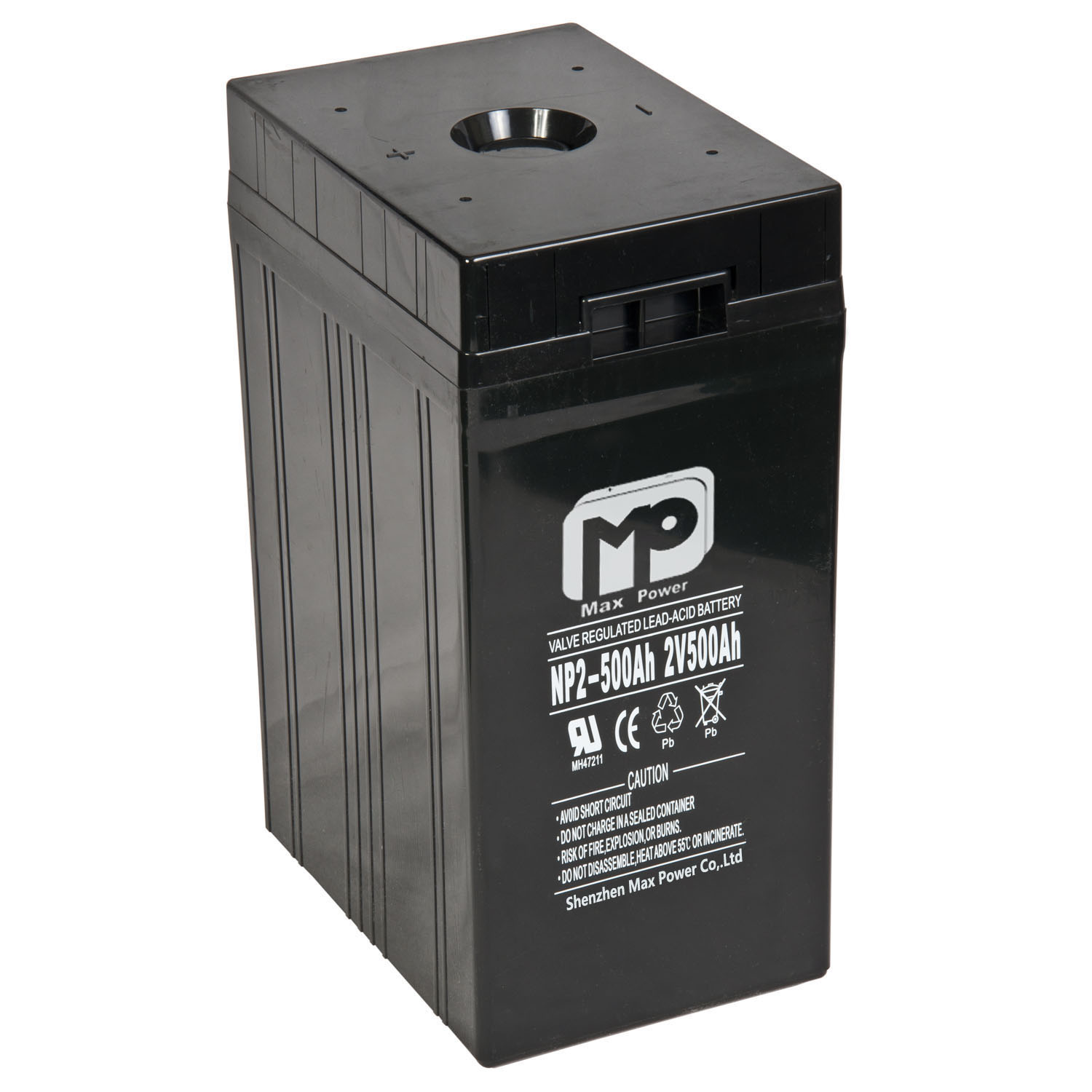

2V 500ah Agm Deep Cycle Battery
Key Feature
Voltage :2V
Capacity :500ah
Battery type :lead acid battery
Cycle life:2000-6000 cycles
Warranty :3 Year
OEM:Available
Application : Telecom base station, Solar system
Cell Brand : Max Power
Certiftcation:ISO9001CE, ROSH, UN38.3, CNAS, MSDS
Features
1. Safety: Lead Acid battery, no fire, none explosive
2. Clean and green energy, does not contain toxic material
3.Powerfull
4.Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.
5.No memory effect, highly efficient charging at any time
6. Wide operating temperature:-10~55°C
7. Low self-discharge rate:<3% monthly
8.With individual package, clear warning mark, logo. Instruction manual printed in colors
Specification

Battery Model

NP 500 -2  2V500AH

Designed Floating Life

Up to 10 Years

Capacity  (25℃)

10HR(50.00A,10.8V)

5HR(80.30A,10.8V)

3HR(118.30A,10.8V)

1HR(253.30A,10.8V)

500.00AH

401.50AH

354.90AH

253.30AH

Dimensions

Length

Width

Height

Total Height

240mm (9.45inch)

173mm (6.81inch)

338mm (13.31inch)

365mm (14.37inch)

Approx. Weight

31.00Kg (68.36 lbs)

Internal Resistance

Full charged at 25℃:≤0.52mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃

102%

100%

85%

65%

Charge Voltage(25℃)

Cycle use

Float use

2.40-2.50V(-5mV/℃), max. Current:150A

2.25-2.30V (-3.0mV/℃)



Product details

  • Component ......Raw material
  • Positive ........Lead dioxide
  • Negative ........Lead
  • Container ........ABS
  • Cover ........ABS
  • Sealant ........Epoxy
  • Safety valve .... Rubber
  • Terminal ........Copper
  • Separator ........Fiber glass
  • Electrolyte ....... Sulfuric acid
