Application : Telecom base station, Solar system

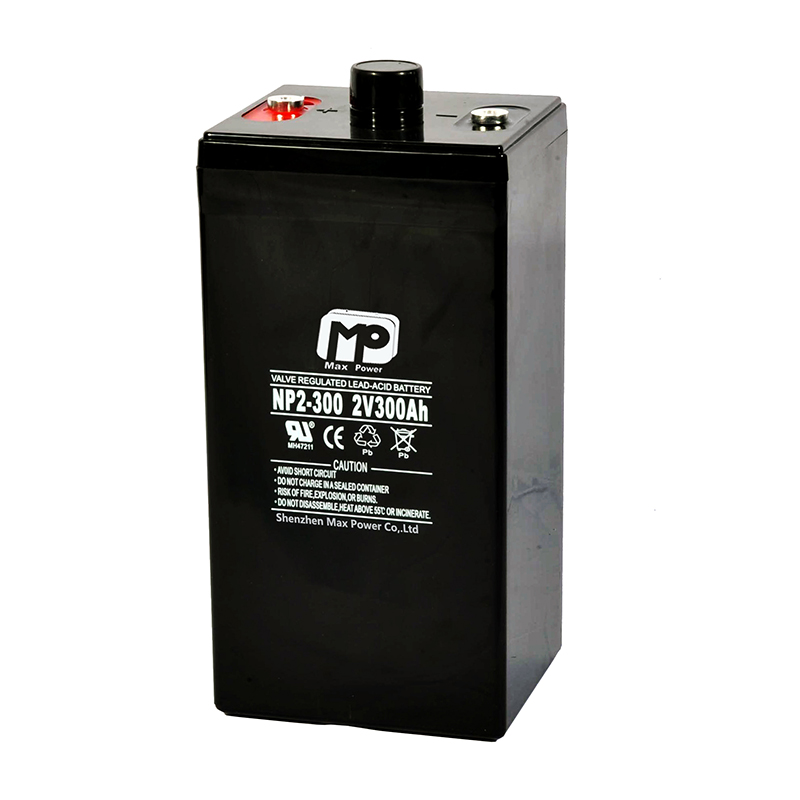

Battery Model |
NP 300 -2 2V300AH |
|||
Designer Floating Life |
Up to 10 Years |
|||
Capacity (25℃) |
10HR(10.0A,1.8V) |
5HR(16.06A,1.8V) |
3HR(23.66A,1.8V) |
1HR(50.66A,1.8V) |
100.0AH |
80.30AH |
70.98AH |
50.66AH |
|
Dimensions |
Length |
Width |
Height |
Total Height |
170mm (6.69inch) |
72mm (2.83inch) |
205mm (8.07inch) |
228mm (8.98inch) |
|
Approx. Weight |
19.50Kg (43.00 lbs) | |||
Internal Resistance |
Full charged at 25℃:≤2.10mΩ |
|||
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
Capacity Affected by Temp.(20HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
102% |
100% |
85% |
35% |
|
Charge Voltage(25℃) |
Cycle use |
Float use |
||
2.30-2.40V(-3.3mV/℃), max. Current:25.0A |
2.20-2.25V (-3.3mV/℃) |
Battery Model |
NP 1000 -2 2V1000AH |
|||
Designer Floating Life |
Up to 15 Years |
|||
Capacity (25℃) |
10HR(100.00A,1.8V) |
3HR(250A,1.7V) |
1HR(550A,1.6V) |
0.25HR(1700A,1.6V) |
|
1000.00AH |
750AH |
550AH |
425AH |
Dimensions |
Length |
Width |
Height |
Total Height |
|
474mm (18.66inch) |
173mm (6.81inch) |
329mm (12.95inch) |
365mm (14.37inch) |
Approx. Weight |
61.50Kg (135.61 lbs) |
|||
Internal Resistance |
Full charged at 25℃:≤0.42mΩ |
|||
Self Discharge |
2% of capacity declined per month at (25℃) |
|||
Capacity Affected by Temp.(10HR) |
40℃ |
25℃ |
0℃ |
-15℃ |
|
102% |
100% |
85% |
65% |
Charge Voltage(25℃) |
Cycle use |
Float use |
||
|
2.40-2.50V (-3mV/℃), max. Current:250.0A |
2.25-2.30V (-3.0mV/℃) |
