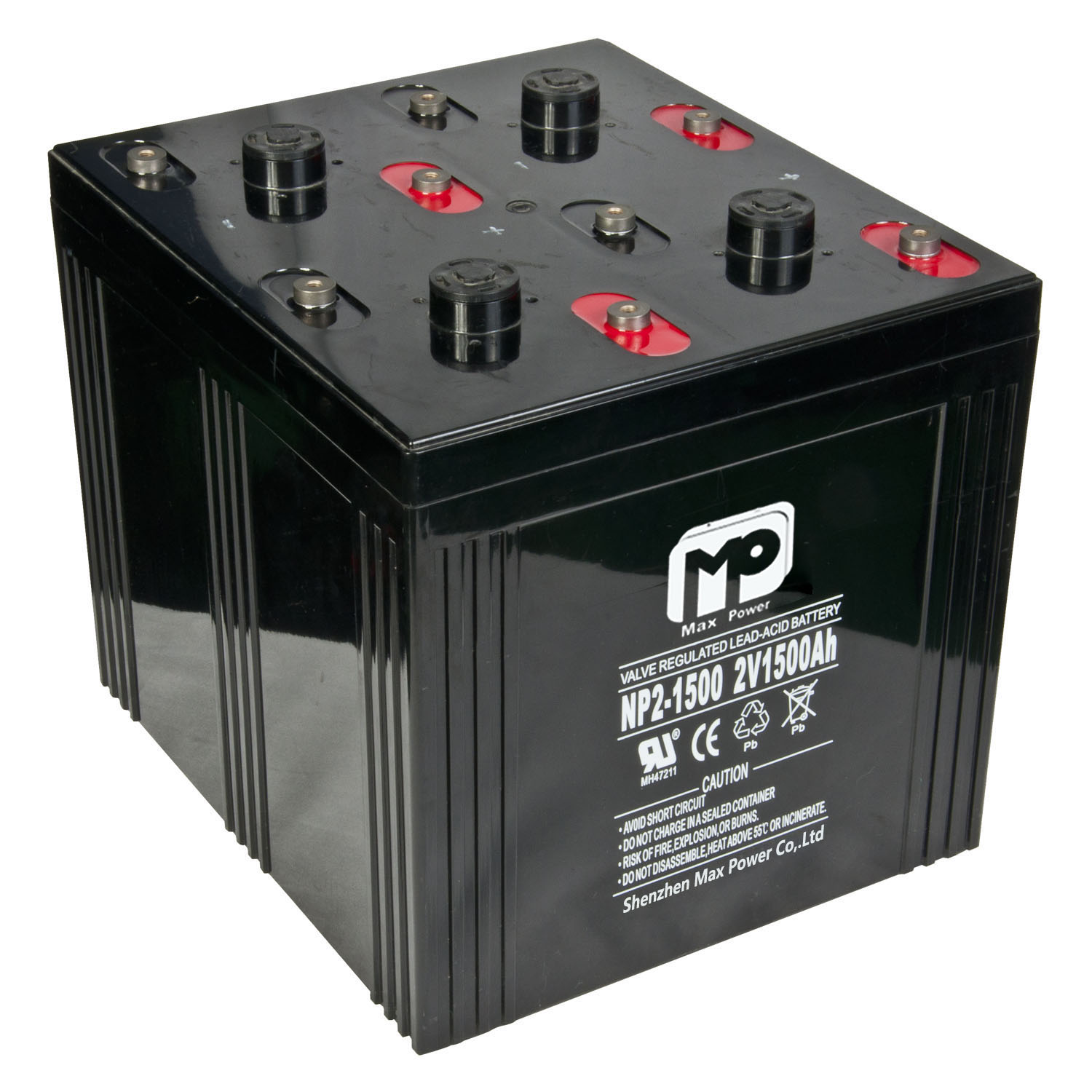

2V1500AH

2v1500ah factory direct rechargeable gel battery
Key Feature
Voltage :2V
Capacity :1500ah
Battery type :lead acid battery
Cycle life:2000-6000 cycles
Warranty :3 Year
OEM:Available
Application : Telecom base station, Solar system
Cell Brand : Max Power
Certiftcation:ISO9001CE, ROSH, UN38.3, CNAS, MSDS
Features
1. Safety: Lead Acid battery,no fire, none explosive
2. Clean and green energy, does not contain toxic material
3.Powerfull
4.Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.
5.No memory effect, highly efficient charging at any time
6. Wide operating temperature:-10~55°C
7. Low self-discharge rate:<3% monthly
8.With individual package, clear warning mark, logo. Instruction manual printed in colors
Specification

Battery Model

NP 1500 -2  2V1500AH

Designer Floating Life

Up to 15 Years

Capacity  (25℃)

10HR(100.00A,1.8V)

3HR(250A,1.7V)

1HR(550A,1.6V)

0.25HR(1700A,1.6V)



1500.00AH

1312AH

1152AH

840AH

Dimensions

Length

Width

Height

Total Height



401mm (18.66inch)

353mm (6.81inch)

342mm (12.95inch)

352mm (14.37inch)

Approx. Weight

100Kg

Internal Resistance

Full charged at 25℃:0.42mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(10HR)

40℃

25℃

0℃

-15℃



102%

100%

85%

65%

Charge Voltage(25℃)

Cycle use

Float use



2.40-2.50V (-3mV/℃), max. Current:300.0A

2.25-2.30V (-3.0mV/℃)



Product details

  • Component ......Raw material
  • Positive ........Lead dioxide
  • Negative ........Lead
  • Container ........ABS
  • Cover ........ABS
  • Sealant ........Epoxy
  • Safety valve .... Rubber
  • Terminal ........Copper
  • Separator ........Fiber glass
  • Electrolyte ....... Sulfuric acid
Application

Certificate

Logistics
