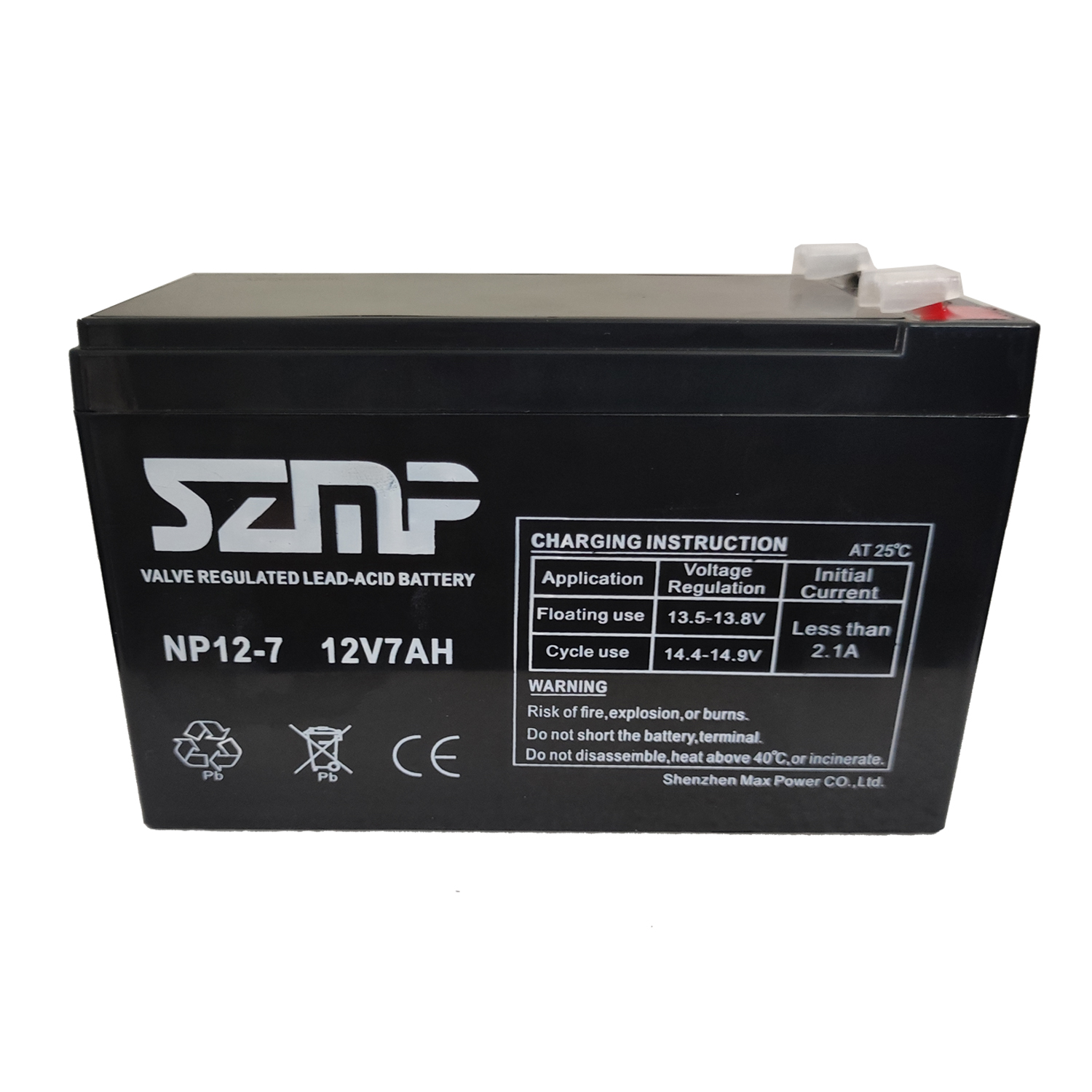

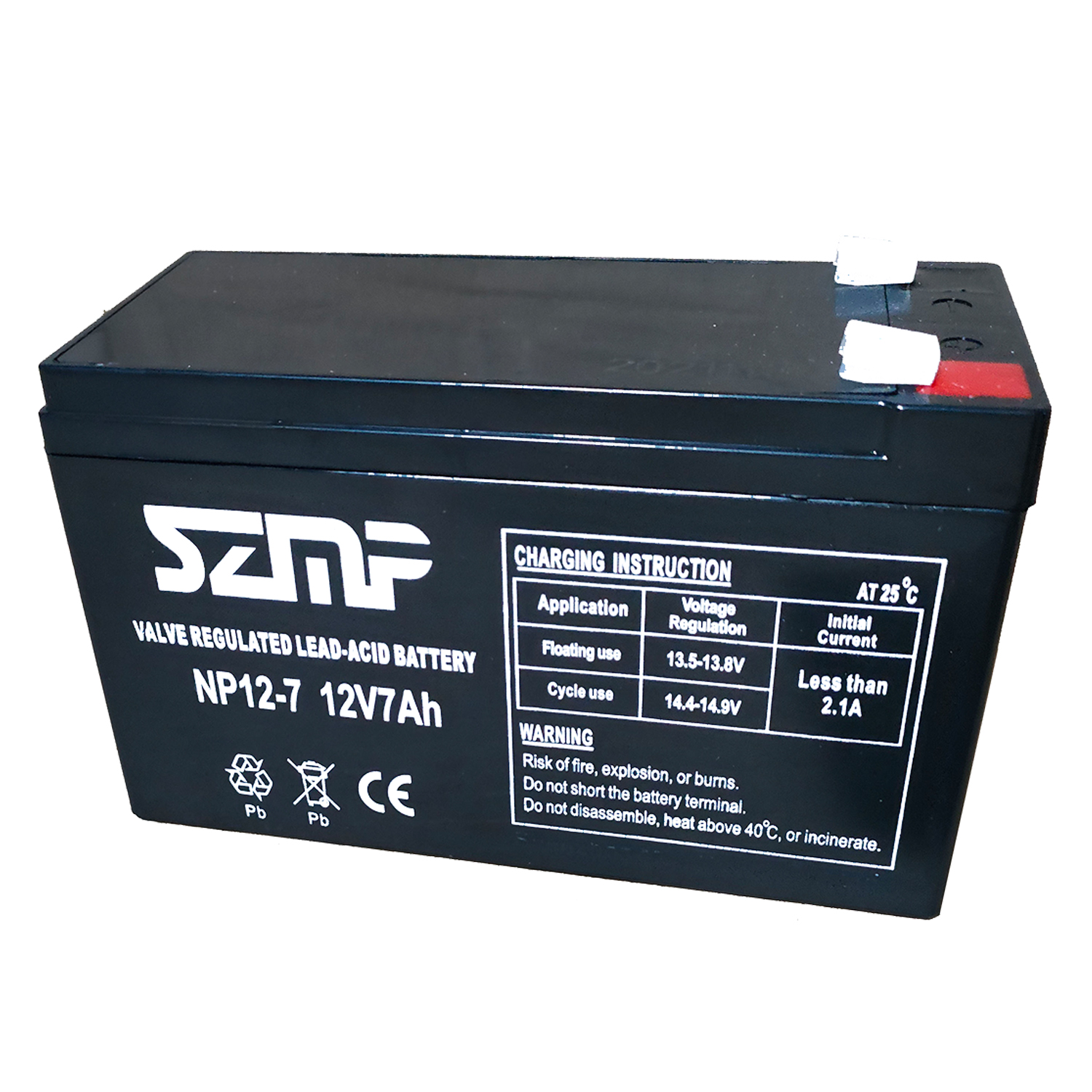

12V7AH

12v7ah deep cycle solar lifepo4 battery replaced lead-acid battery

Key Feature

Voltage : 12V

Capacity : 7AH

Battery type : lead acid battery

Cycle life: 800-1000 cycles

Warranty : 1 Year

OEM: Available

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Automotive, Electric Wheelchairs

Cell Brand : Max Power

Certiftcation:ISO9001CE, ROSH, UN38.3，CNAS, MSDS

Features

1. Safety: Lead Acid battery, no fire, none explosive

2. Clean and green energy, does not contain toxic material

3.Powerfull

4.Prolonged life cycle, after 800-1000 cycles, the residual capacity exceeds 80% of its original capacity.

5.No memory effect, highly efficient charging at any time

6. Wide operating temperature:-10~55°C

7. Low self-discharge rate:<3% monthly

8.With individual package, clear warning mark, logo. Instruction manual printed in colors

Specification

Battery Model	NP 7-12 12V7AH
Designer Floating Life	Up to 3 Years
Capacity (25℃)	20HR(0.2A,10.50V)	10HR(0.38A,10.50V)	5HR(0.68A,10.5V)	1HR(2.2A,10.5V)
	7AH	6.5AH	5.8AH	4.88AH
Dimensions	Length	Width	Height	Total Height
	151mm (5.94inch)	65mm （2.56inch)	94mm (3.7inch)	100mm (3.94inch)

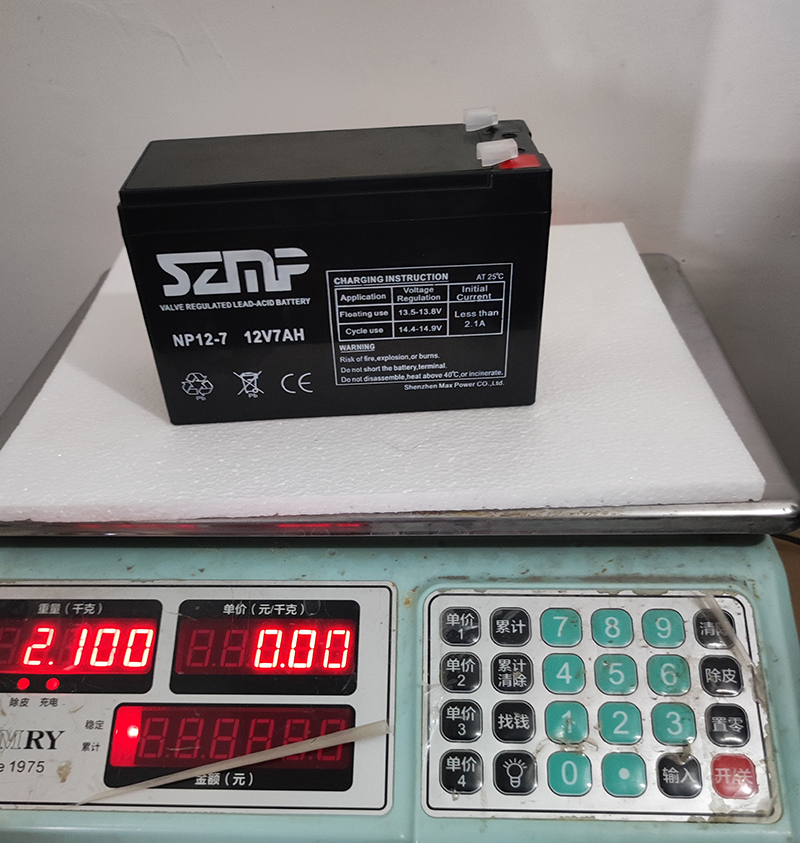

Approx. Weight	2.1 kg (4.85lbs)
Internal Resistance	Full charged at 25℃:≤ 28 mΩ
Self Discharge	2% of capacity declined per month at (25℃)
Capacity Affected by Temp.(20HR)	40℃	25℃	0℃	-15℃
	102%	100%	88%	78%
Charge Voltage(25oC)	Cycle use		Float use
	7.2-7.3V(-30mV/℃), max. Current: 1.05A		6.8-6.9V (-20mV/℃)
