12V75AH

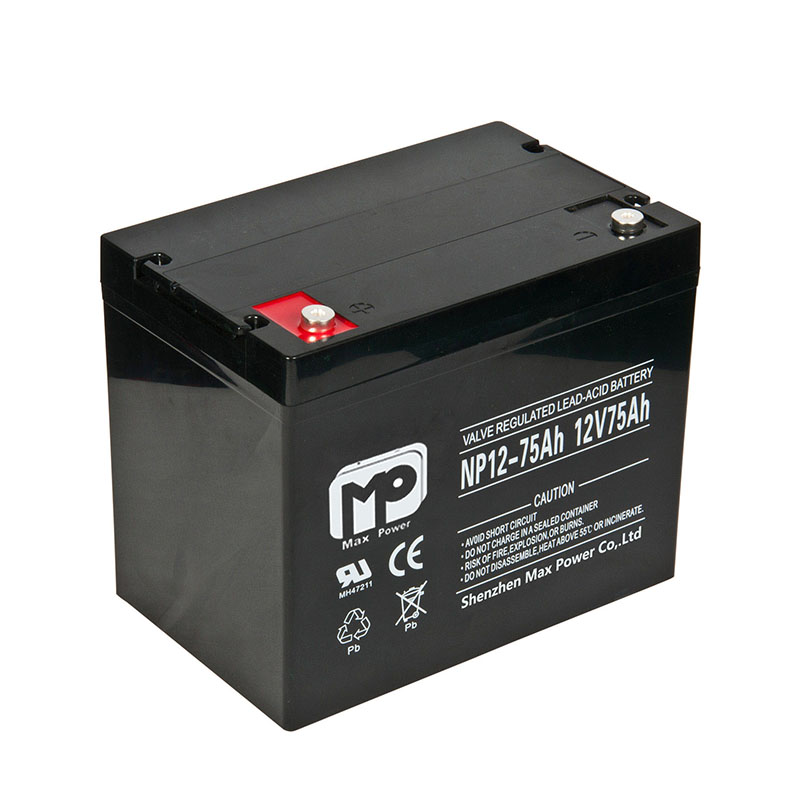

UPSBattery 12V75Ah Durable AGM Battery for EPS System

Key Feature

Voltage : 12V

Capacity : 75AH

Battery type : lead acid battery

Cycle life: 800-1000 cycles

Warranty : 1 Year

OEM: Available

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Automotive, Electric Wheelchairs

Cell Brand : Max Power

Certiftcation:ISO9001CE, ROSH, UN38.3， CNAS, MSDS

Features

1. Safety: Lead Acid battery, no fire, none explosive

2. Clean and green energy, does not contain toxic material

3.Powerfull

4.Prolonged life cycle, after 800-1000 cycles, the residual capacity exceeds 80% of its original capacity.

5.No memory effect, highly efficient charging at any time

6. Wide operating temperature:-10~55°C

7. Low self-discharge rate:<3% monthly

8.With individual package, clear warning mark, logo. Instruction manual printed in colors

Specification

Battery Model	NP 75-12 12V75AH
Designer Floating Life	Up to 10 Years
Capacity (25℃)	20HR(3.75A,10.5V)	10HR(7.12A,10.8V)	1HR(41.25A,9.6V)	27min(127.5A,9.6V)
	75AH	71.25AH	41.25AH	31.87AH
Dimensions	Length	Width	Height	Total Height
	260mm (10.24inch)	167mm (6.57inch)	208mm (8.31inch)	230/211mm (9.1/8.5inch)
Approx. Weight	21Kg (48.4 lbs)
Internal Resistance	Full charged at 25℃:≤5.8mΩ
Self Discharge	2% of capacity declined per month at (25℃)
Capacity Affected by Temp.(20HR)	40℃	25℃	0℃	-15℃
	102%	100%	85%	65%
Charge Voltage(25℃)	Cycle use		Float use
	14.4-15.0V(-18mV/℃), max. Current: 22.5A		13.5-13.8V (-18mV/℃)
