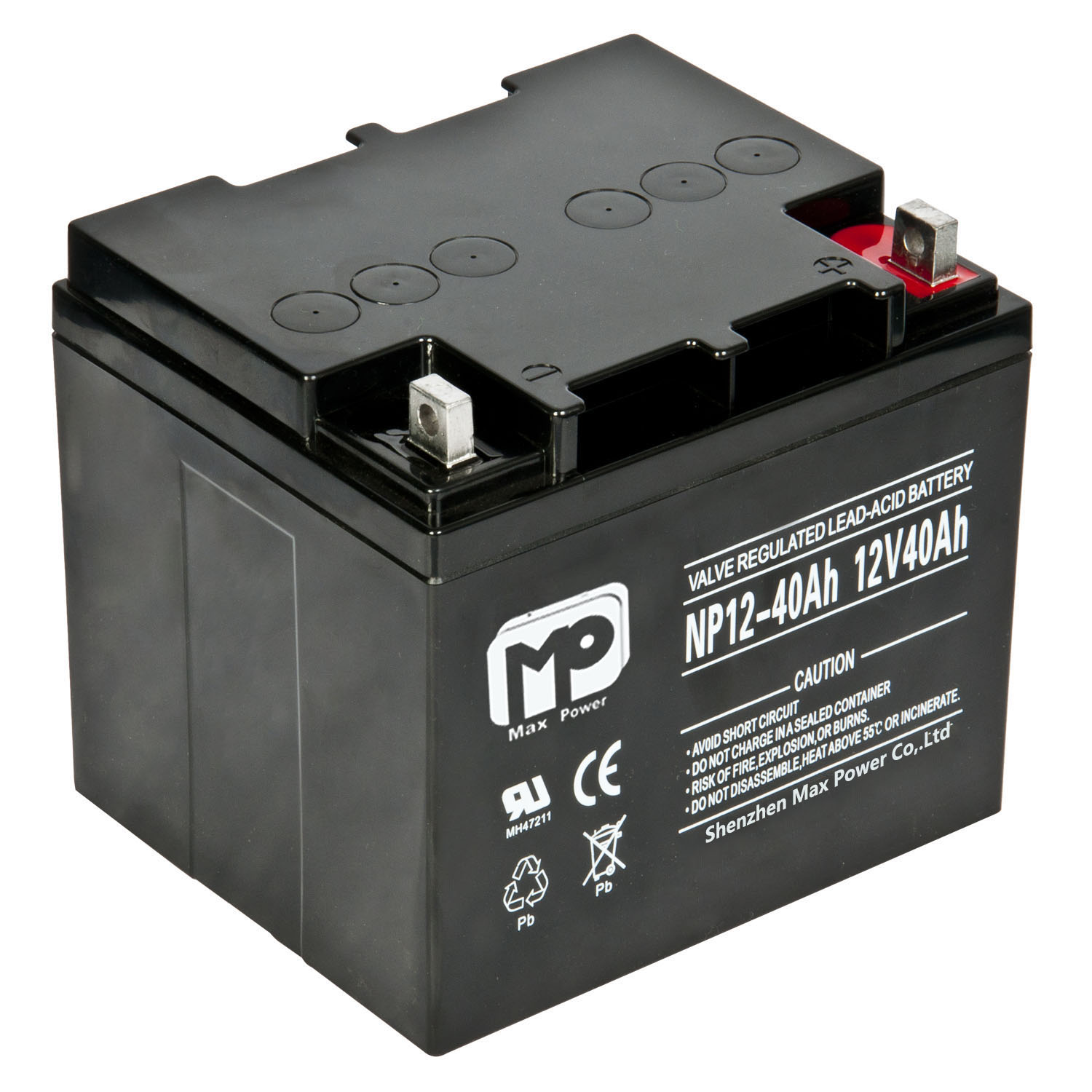

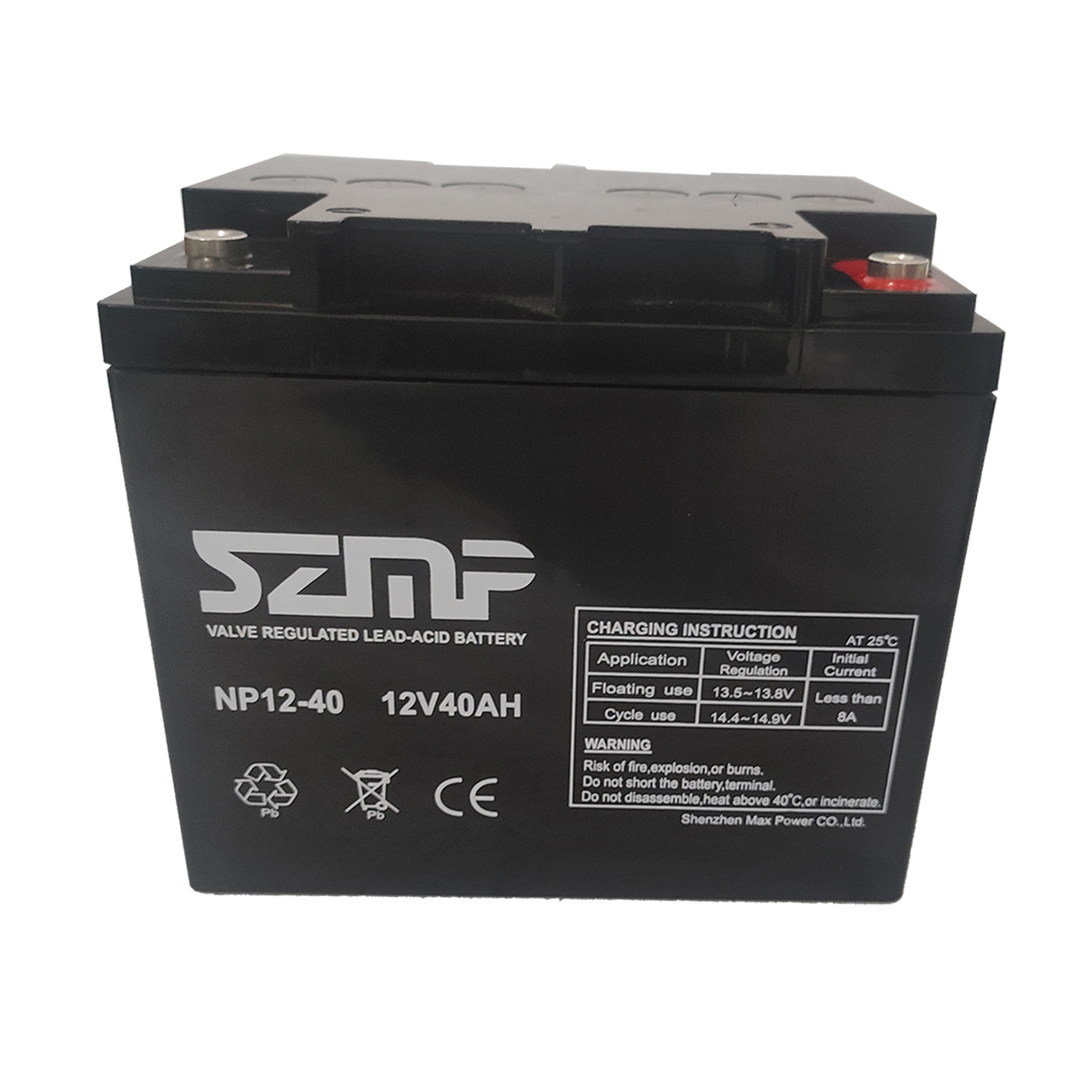

12V40AH

12v40Ah Lead Acid Battery New Product Fast Charging

Key Feature

Voltage : 12V

Capacity : 40AH

Battery type : lead acid battery

Cycle life: 800-1000 cycles

Warranty : 2 Year

OEM: Available

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Automotive, Electric Wheelchairs

Cell Brand : Max Power

Certiftcation:ISO9001CE, ROSH, UN38.3， CNAS, MSDS

Features

1. Safety: Lead Acid battery, no fire, none explosive

2. Clean and green energy, does not contain toxic material

3.Powerfull

4.Prolonged life cycle, after 800-1000 cycles, the residual capacity exceeds 80% of its original capacity.

5.No memory effect, highly efficient charging at any time

6. Wide operating temperature:-10~55°C

7. Low self-discharge rate:<3% monthly

8.With individual package, clear warning mark, logo. Instruction manual printed in colors

Specification

Battery Model	NP 40-12 12V40AH
Designer Floating Life	Up to 10 Years
Capacity (25℃)	20HR(2.0A,10.5V)	10HR(1.9A,10.5V)	1HR(20.0A,9.6V)	27min(40.0A,9.6V)
	40AH	38.0AH	20.0AH	18.0AH
Dimensions	Length	Width	Height	Total Height
	198mm	166mm	170mm	170mm

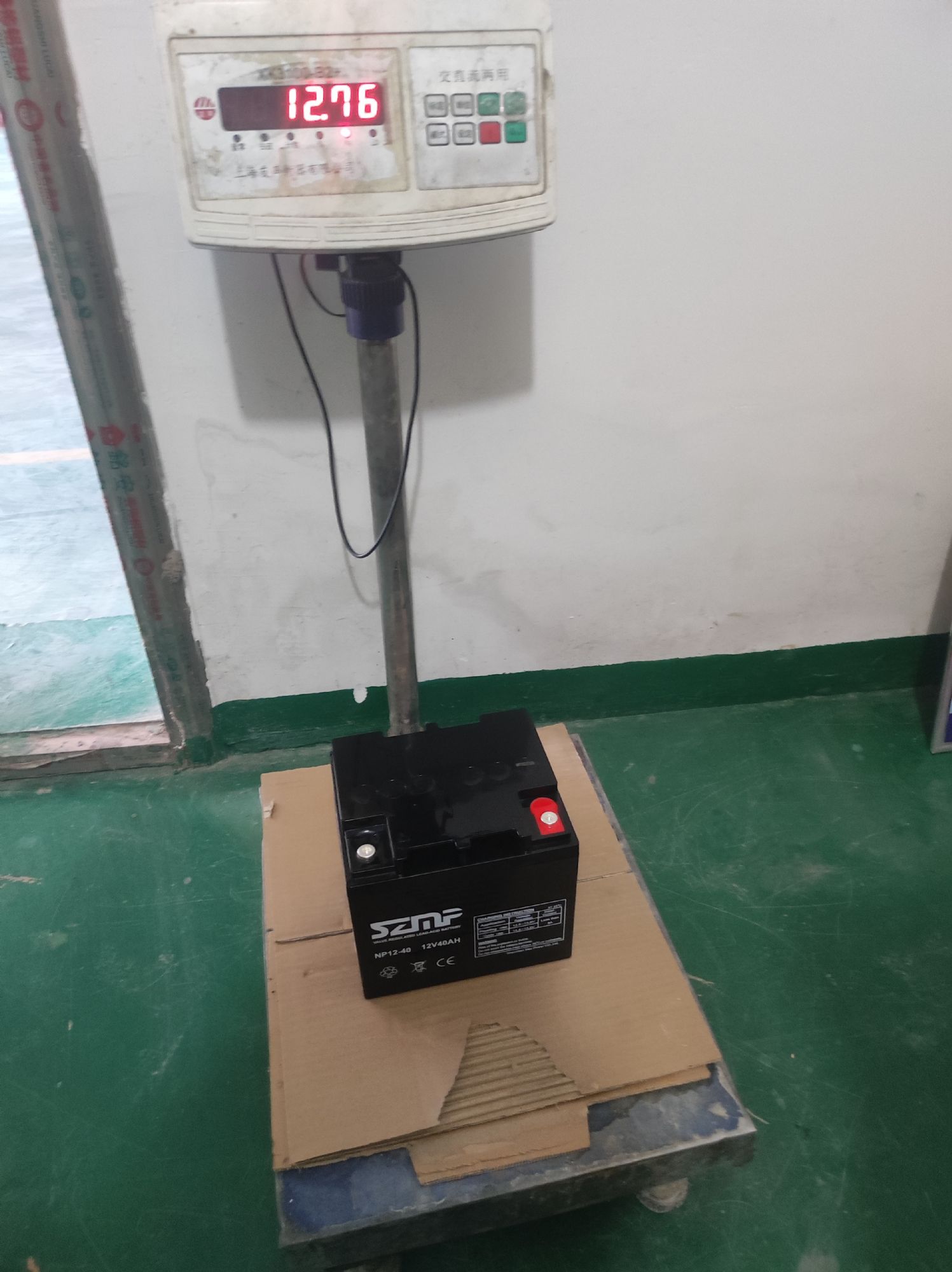

Approx. Weight	12.70Kg
Internal Resistance	Full charged at 25℃:≤9.0mΩ
Self Discharge	2% of capacity declined per month at (25℃)
Capacity Affected by Temp.(20HR)	40℃	25℃	0℃	-15℃
	102%	100%	85%	65%
Charge Voltage(25℃)	Cycle use		Float use
	14.40-15.00V(-18mV/℃), max. Current:6.0A		13.50-13.80V (-18mV/℃)
