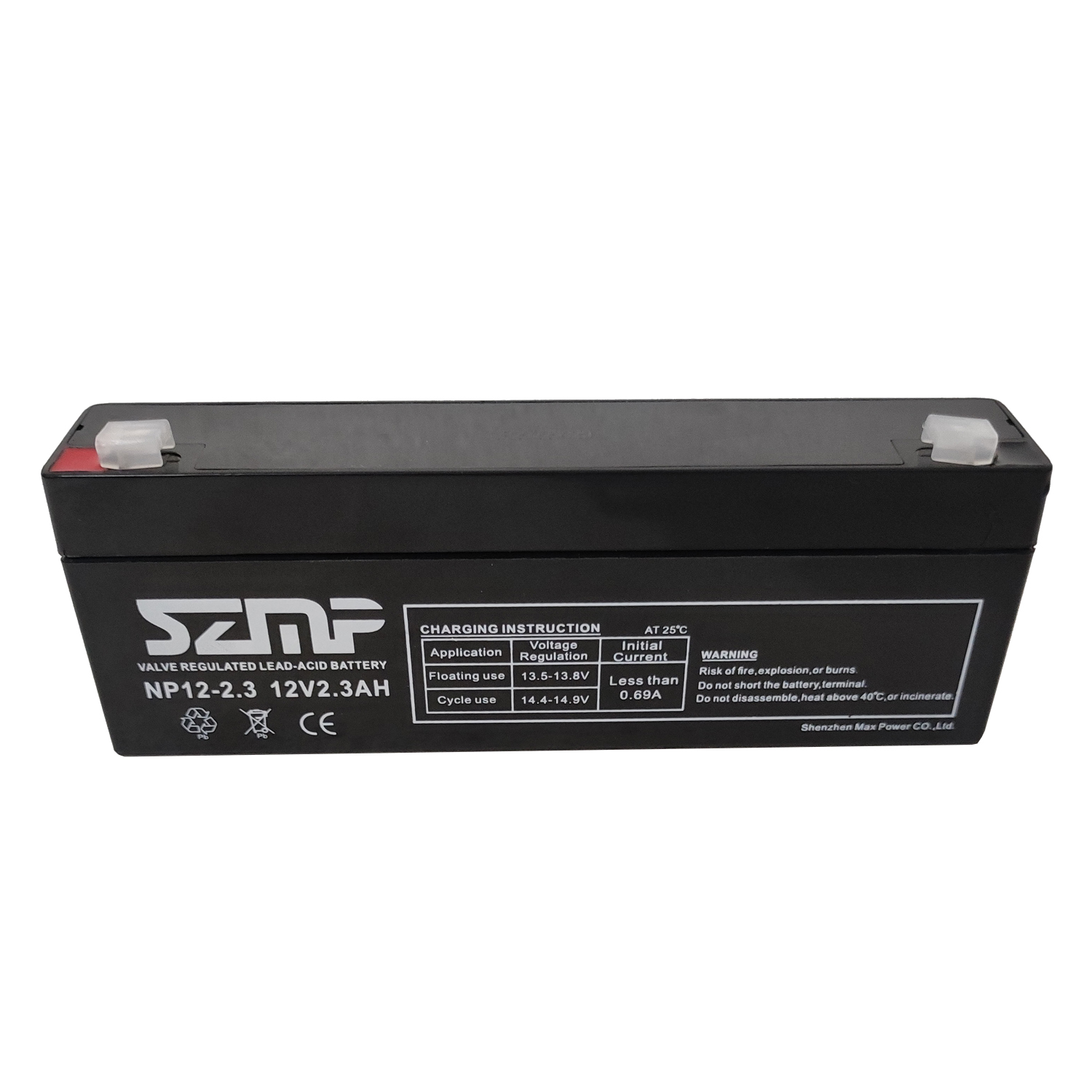

12V2.3AH

12V2.3AH for security system usage
Key Feature
Voltage : 12V
Capacity : 2.3AH
Battery type : lead acid battery
Cycle life: 800-1000 cycles
Warranty : 1 Year
OEM: Available
Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Automotive, Electric Wheelchairs
Cell Brand : Max Power
Certiftcation:ISO9001CE, ROSH, UN38.3, CNAS, MSDS
Features
1. Safety: Lead Acid battery, no fire, none explosive
2. Clean and green energy, does not contain toxic material
3.Powerfull
4.Prolonged life cycle, after 800-1000 cycles, the residual capacity exceeds 80% of its original capacity.
5.No memory effect, highly efficient charging at any time
6. Wide operating temperature:-10~55°C
7. Low self-discharge rate:<3% monthly
8.With individual package, clear warning mark, logo. Instruction manual printed in colors
Specification
​ ​ ​ ​ ​ ​ ​ ​ ​ ​ ​

 Battery Model

NP 2.3-12  12V2.3AH

Designer Floating Life

Up to 3 Years

Capacity  (25℃)

20HR(0.2A,10.50V)

10HR(0.38A,10.50V)

5HR(0.68A,10.5V)

1HR(2.2A,10.5V)



2.3AH

2.2AH

2.0AH

1.88AH

Dimensions

Length

Width

Height

Total Height



178mm (7.01inch)

35mm 1.038inch)

61mm (2.4inch)

67mm (2.64inch)

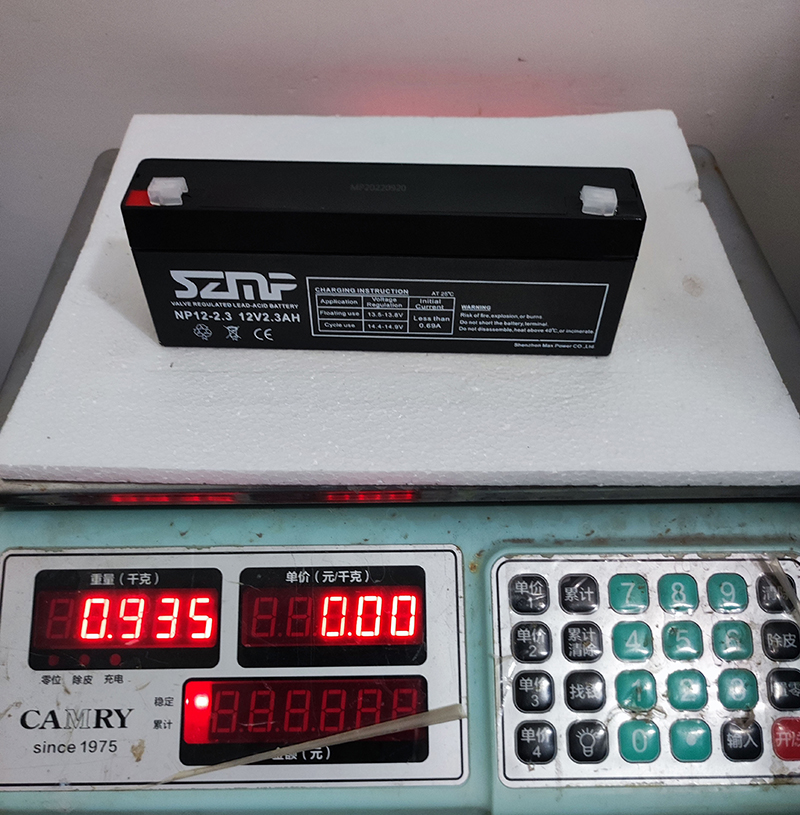

Approx. Weight

0.92K

Internal Resistance

Full charged at 25℃:75 mΩ

Self Discharge

2% of capacity declined per month at (25℃)

Capacity Affected

by Temp.(20HR)

40℃

25℃

0℃

-15℃



102%

100%

88%

78%

Charge Voltage(25oC)

Cycle use

Float use



7.2-7.3V(-30mV/℃), max. Current: 0.52A

6.8-6.9V (-20mV/℃)

​​​​
Product details

  • Component ......Raw material
  • Positive ........Lead dioxide
  • Negative ........Lead
  • Container ........ABS
  • Cover ........ABS
  • Sealant ........Epoxy
  • Safety valve .... Rubber
  • Terminal ........Copper
  • Separator ........Fiber glass
  • Electrolyte ....... Sulfuric acid
Application

Certificate

Logistics
