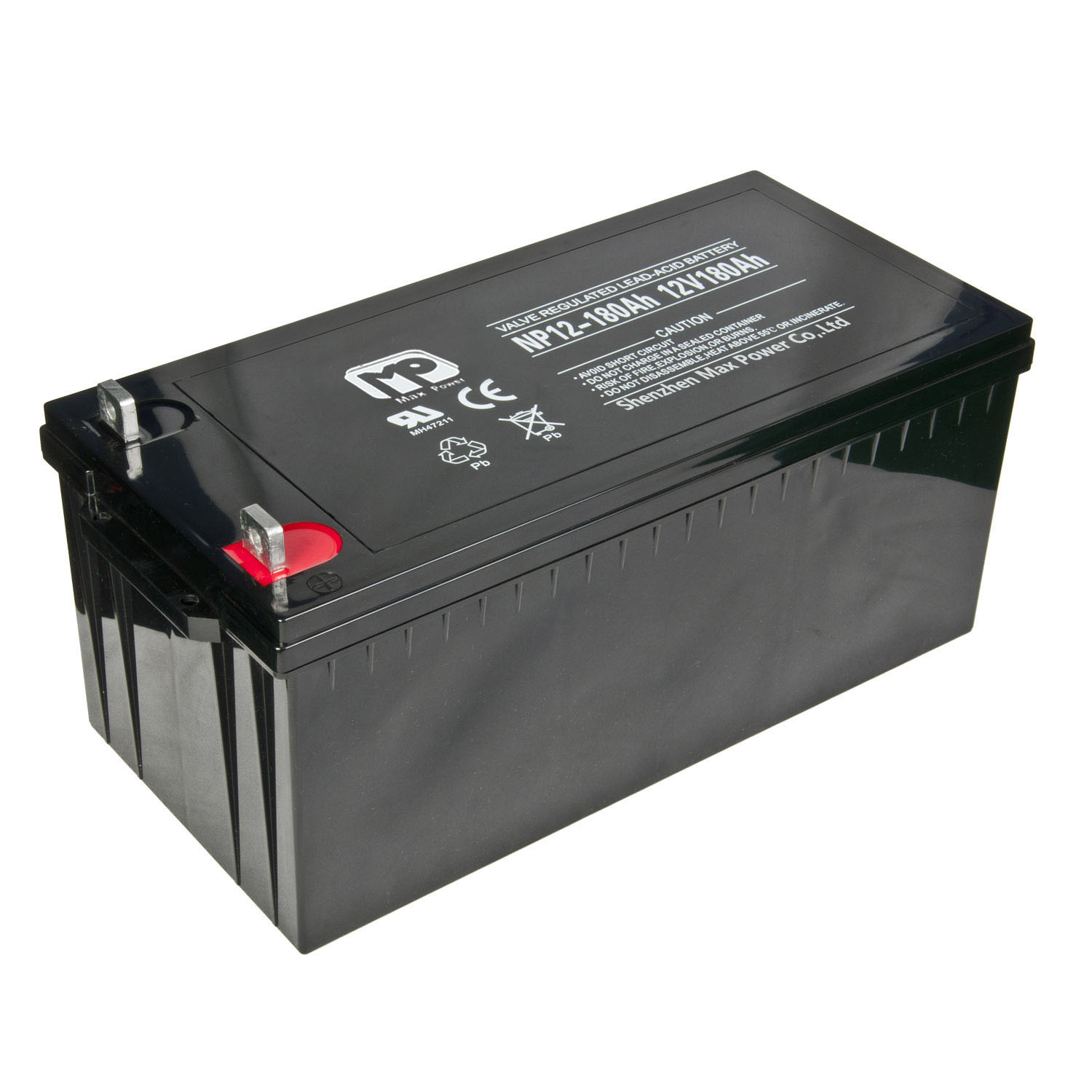

12V180AH

Solar gel battery 12v180ah lead acid deep cycle battery can be used for battery car/industrial electricity,working life 10 years

Key Feature

Voltage : 12V

Capacity : 180AH

Battery type : lead acid battery

Cycle life: 800-1000 cycles

Warranty : 1 Year

OEM: Available

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Automotive, Electric Wheelchairs

Cell Brand : Max Power

Certiftcation:ISO9001CE, ROSH, UN38.3， CNAS, MSDS

Features

1. Safety: Lead Acid battery, no fire, none explosive

2. Clean and green energy, does not contain toxic material

3.Powerfull

4.Prolonged life cycle, after 800-1000 cycles, the residual capacity exceeds 80% of its original capacity.

5.No memory effect, highly efficient charging at any time

6. Wide operating temperature:-10~55°C

7. Low self-discharge rate:<3% monthly

8.With individual package, clear warning mark, logo. Instruction manual printed in colors

Specification

Battery Model	NP 180-12 12V180AH
Designer Floating Life	Up to 10 Years
Capacity (25℃)	20HR(7.5A,10.50V)	10HR(14.25A,10.80V)	1HR(82.5A,9.6V)	0.25h(255A,9.6V)
	180AH	173AH	153AH	99AH
Dimensions	Length	Width	Height	Total Height
	523mm	240mm	220mm	245mm
Approx. Weight	54.3Kg
Internal Resistance	Full charged at 25℃:≤3mΩ
Self Discharge	2% of capacity declined per month at (25℃)
Capacity Affected by Temp.(10HR)	40℃	25℃	0℃	-15℃
	102%	100%	85%	65%
Charge Voltage(25℃)	Cycle use		Float use
	14.4-15.0V(-18mV/℃), max. Current: 54A		13.5-13.8V (-18mV/℃)
