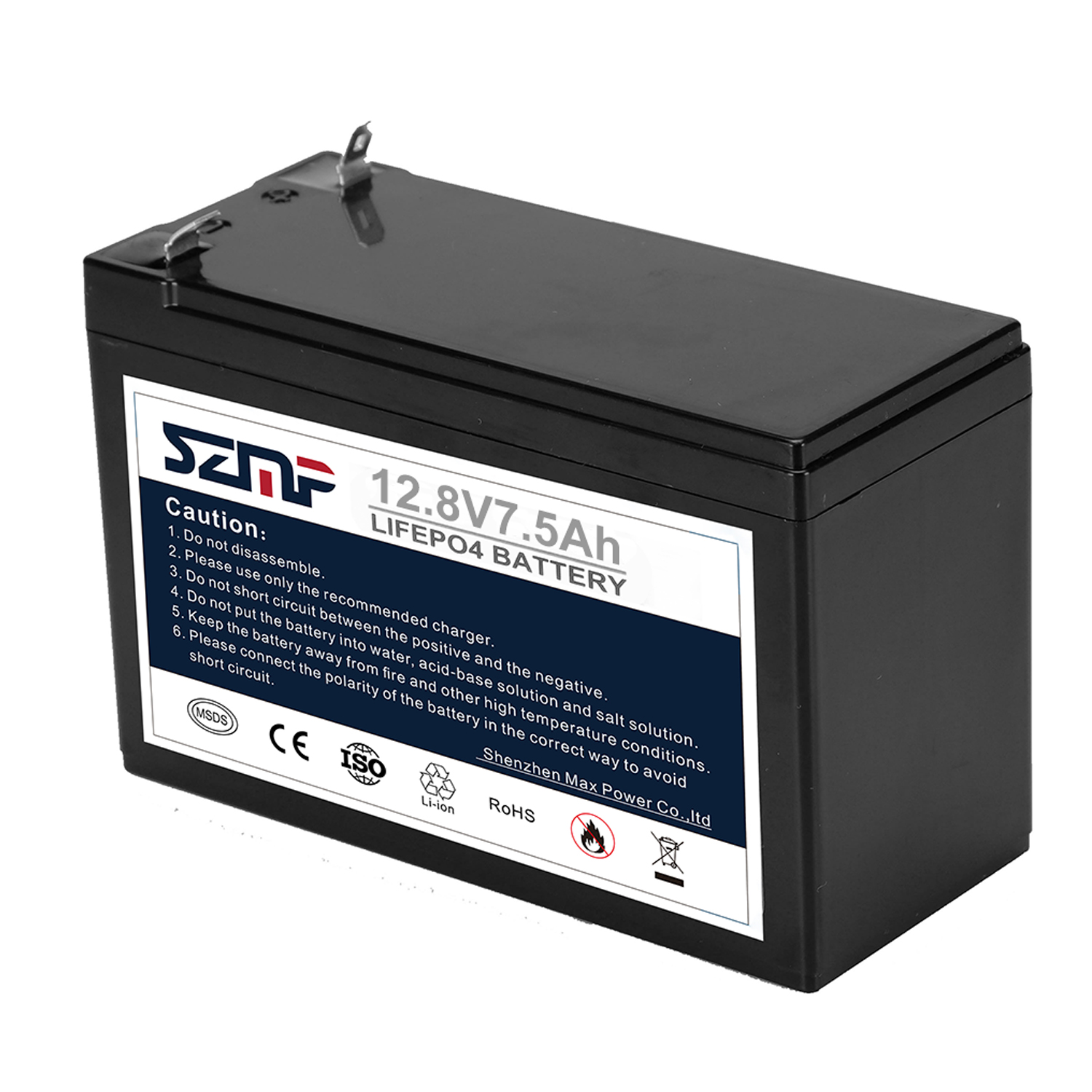

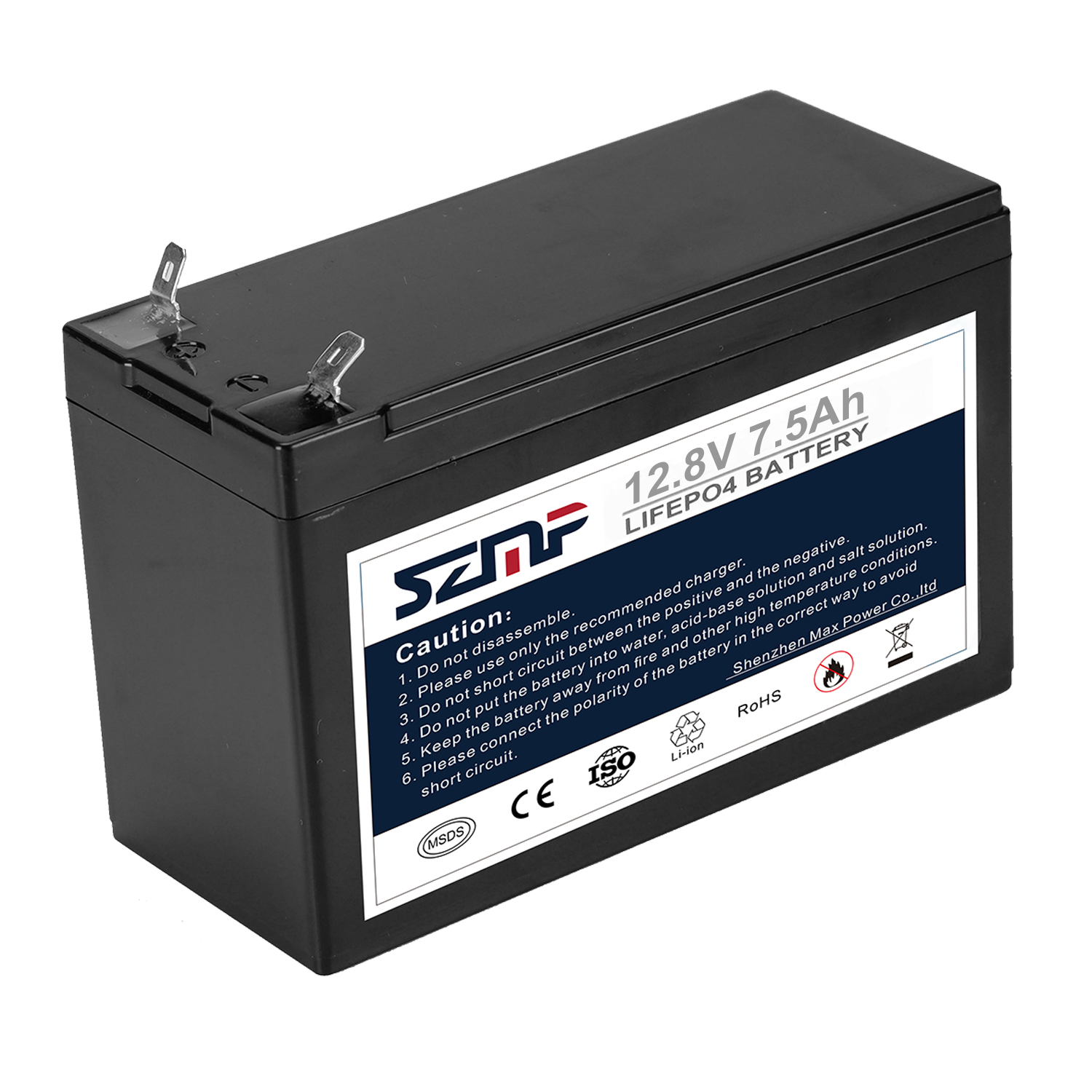

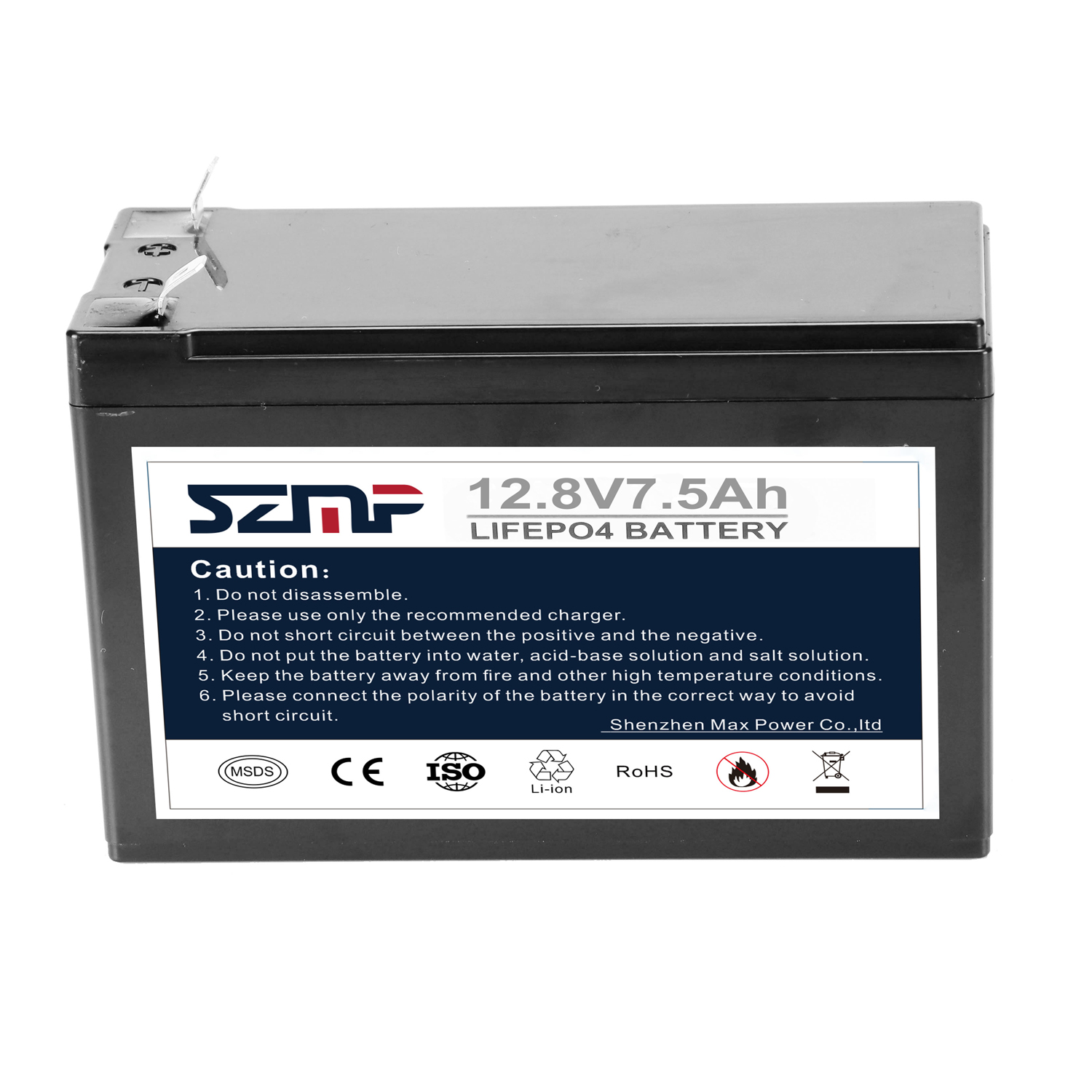

12.8V7.5AH

12.8V7.5AH LiFePO4 Battery pack long Deep cycle life battery with MSDS/UN38.3
Key Feature
Voltage : 12.8V
Capacity : 7.5Ah
Battery type : Lifepo4 Battery
Cycle life: 2000-6000 times
Warranty :2 Year
OEM :Available
Application :electric motorcycle, forklift, golf cart ,boat.
Cell Brand :CATL,BYD,EVE,CALB,SVOLT,LG,REPT,Gotion,ANC etc.
Certification:ISO9001,CE, ROSH,UN38.3,CNAS,MSDS,KC
Features and advantage
  • 1. Safety: telecom base station lifepo4 battery, built-in BMS, no fire, none explosive

  • 2. Clean and green energy, does not contain toxic material

  • 3. Powerful

  • 4. Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.

  • 5. No memory effect, highly efficient charging at any time

  • 6. Wide operating temperature: -10 ~ 55 ° C

  • 7. Small size and light weight.

  • 8. Low self-discharge rate: <3% monthly

  • 9. With individual package, clear warning mark, logo. Instruction manual printed in colors

  • 10. Max Power LiFePO4 Battery have high energy Density, Long cycle life,widely work temperature range and good safety performance, Mainly use in solar power system.wind power,and others energy storage power systems. UPS system, telecommunications system.As well as electric tools ,electric bicycles ,electric motorcycles,military equipment amd other fields.

Specification

Items Parameter
Normal Voltage 12.8V
Rated Capacity 7.5Ah
Internal Resistance ≤75mΩ
Size (151±1)mm *(65±1)mm *(92±2)mm
Weight 1.1±0.1kg
Shell Material ABS
Charge Voltage 14.4±0.15V
Standard Cutoff Volatage About10.0V
Charge Current ≤5A
Charging Cutioff Current 75mA~150mA
Discharge Current 5A -7A
Passive Protection Over charge protection, Over discharge protection, Temperature protection, Balanced function
Positive T1
Nefative T1
Charge Retention After charging according to standard 3.2, placing the battery for 28 days under the standard test conditions, then discharge it
under standard 3.3, and the charge retention rate is ≥80%
Cycle time The cycle life is not less than 2000, the capacity retention rate is ≥80%. (Charging according to 3.2 standard, leaving 0.5~1h;
discharging according to 3.3 standard, leaving 0.5~1h, counting 1 cycle time).
The data is for reference only, all parameters can be customized
