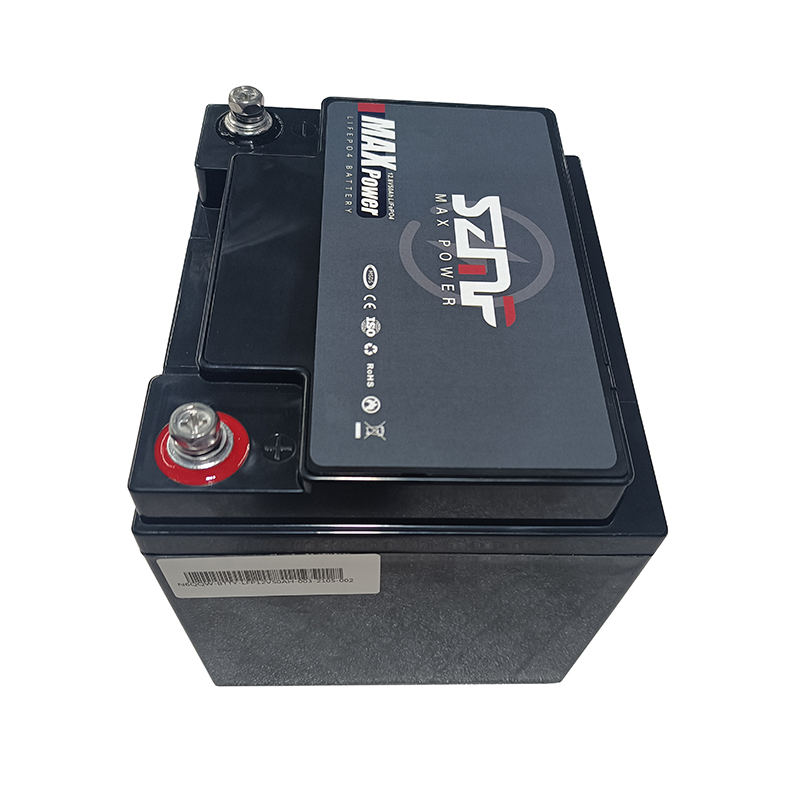

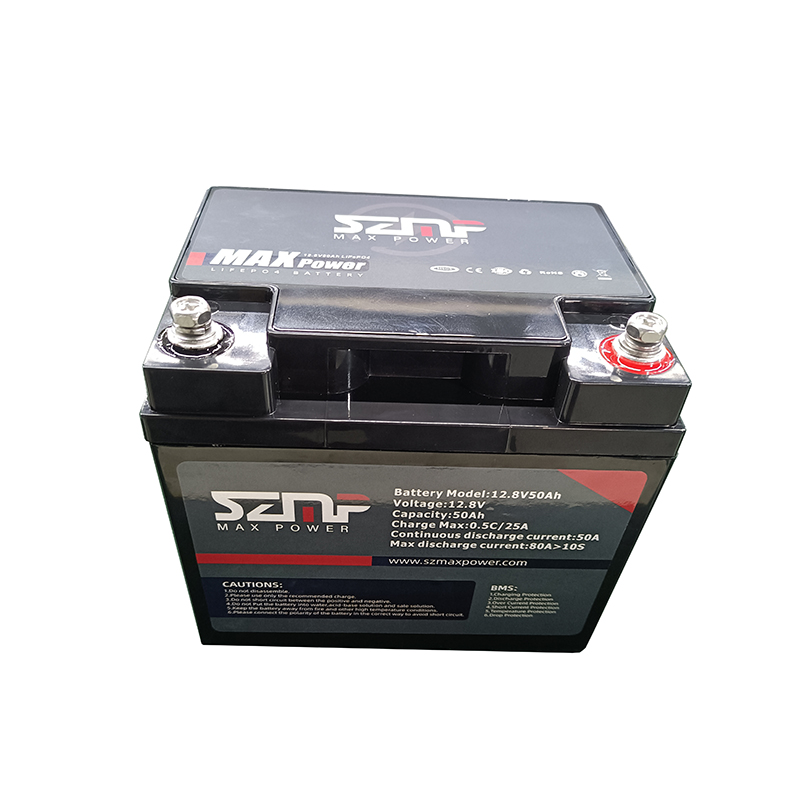

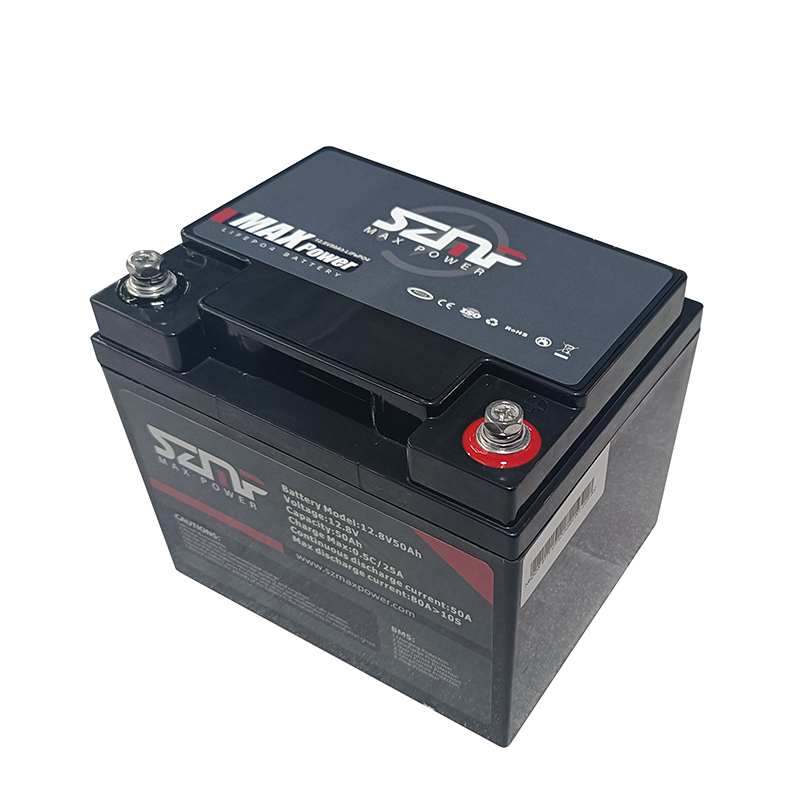

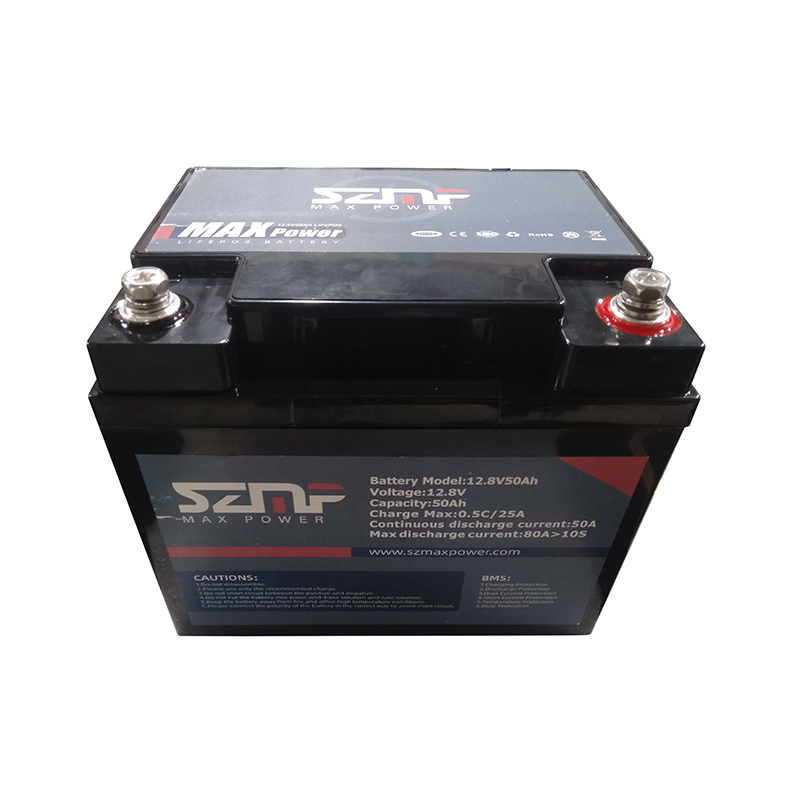

12.8V50AH

12.8v50ah Lifepo4 Battery Module, Solar Battery 12 Months 50ah 12.8V
Key Feature
Voltage : 12.8V
Capacity : 50Ah
Battery type : Lifepo4 Battery
Cycle life: 2000-6000 times
Warranty :2 Year
OEM :Available
Application :electric motorcycle, forklift, golf cart ,boat
Cell Brand :CATL,BYD,EVE,CALB,SVOLT,LG,REPT,Gotion,ANC etc.
Certification:ISO9001,CE, ROSH,UN38.3,CNAS,MSDS,KC
Features and advantage
  • 1. Safety: telecom base station lifepo4 battery, built-in BMS, no fire, none explosive

  • 2. Clean and green energy, does not contain toxic material

  • 3. Powerful

  • 4. Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.

  • 5. No memory effect, highly efficient charging at any time

  • 6. Wide operating temperature: -10 ~ 55 ° C

  • 7. Small size and light weight.

  • 8. Low self-discharge rate: <3% monthly

  • 9. With individual package, clear warning mark, logo. Instruction manual printed in colors

  • 10. Max Power LiFePO4 Battery have high energy Density, Long cycle life,widely work temperature range and good safety performance, Mainly use in solar power system.wind power,and others energy storage power systems. UPS system, telecommunications system.As well as electric tools ,electric bicycles ,electric motorcycles,military equipment amd other fields.

Specification

Name Condition Parameter unit
Nominal capacity Standard charge and discharge(0.2C) 50 Ah
Minimum capacity 47.5
Nominal voltage 12.8 V
Rated Power 640 Wh
Standard Charge(CC/CV)  CC Standard charge 10 A
Standard charging current0.2ItA
cut-off current0.02ItA
Fast charge0.5ItA  25 A
cut-off current   0.02ItA
CV (3.65V*n) 14.6 V
Charge time Standard charge time 0.2ItA 8 h
Fast charge time 1ItA ≤4 h
Standard discharge current 0.2ItA 10 A
Maximum continuous discharge current 60 A
Discharge cut-off voltage 2.1V*n(n=series number) 8.4 V
low voltage for discharge protection 2.1 V
Discharge over-current 250-350 A
Lithium battery (group) working temperature charging temperature 0~45
discharging temperature -20~45
Internal resistance AC 1KHz ≤60
Storage temperature Within a months -20~45
Within 6 months -20~35
Shipment voltage \ 12.8-13.2 V
Weight \ 5.74±0.1 Kg
Overcharge overdischarge overcurrent with equalization
The data is for reference only, all parameters can be customized
