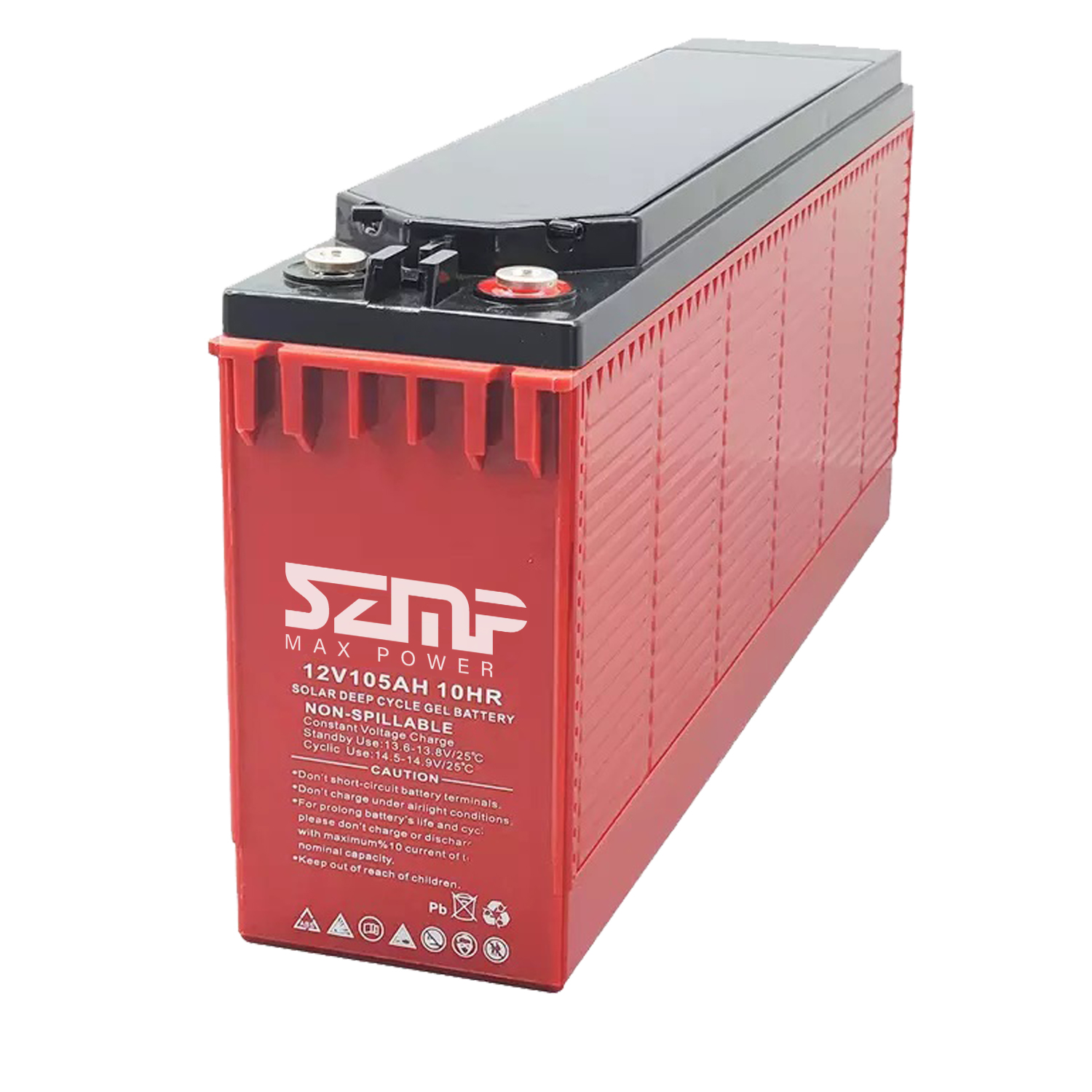

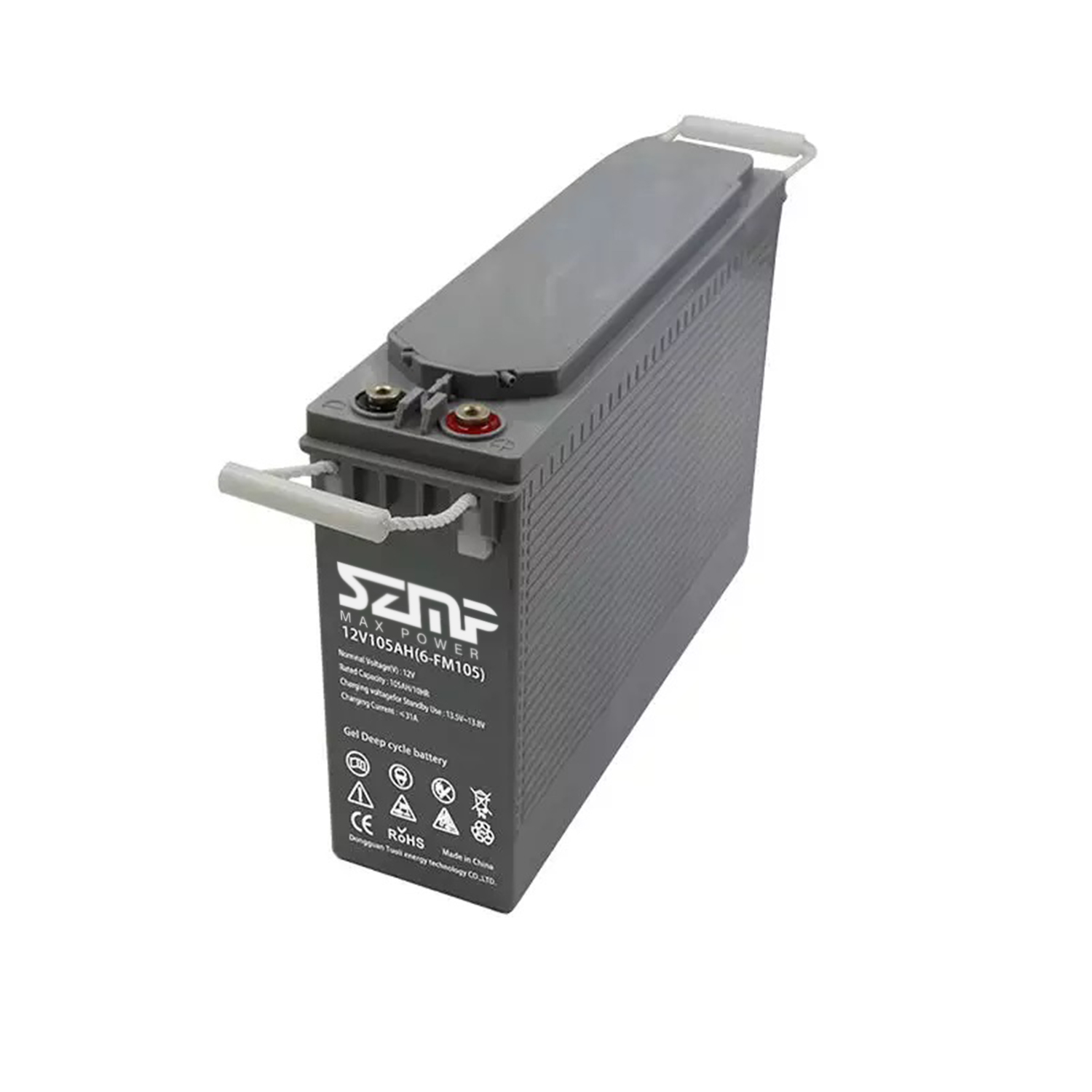

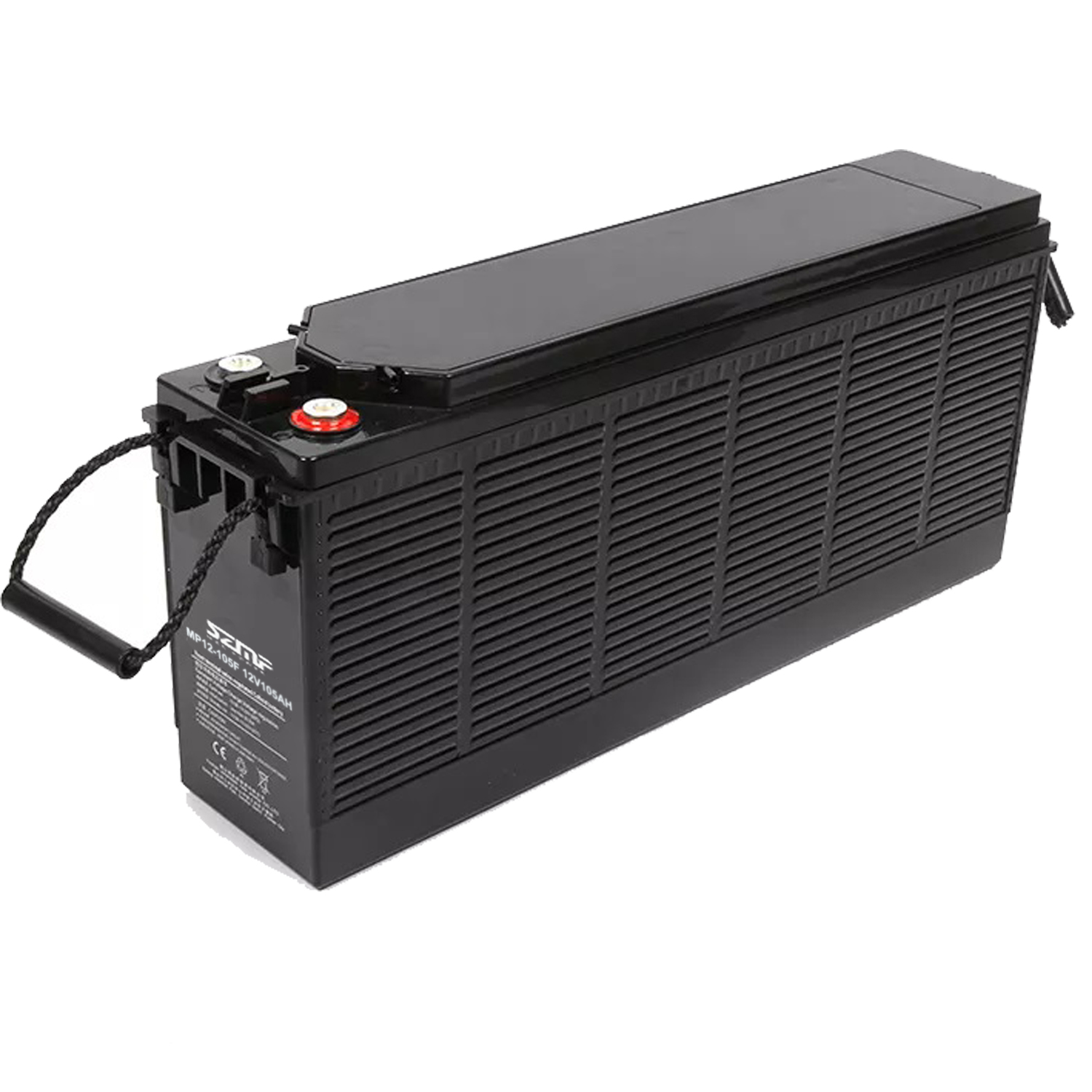

MP12-105F 12V105AH

front terminal deep cycle lead acid 12v105ah front access battery

Key Feature

Voltage : 12V

Capacity : 105AH

Battery type : front terminal lead acid battery

Cycle life: 3000 cycles

Warranty : 3 Year

OEM: Available

Application : Toys, Power Tools, Home Appliances, Consumer Electronics, BOATS, SUBMARINES, Automotive, Electric Wheelchairs

Cell Brand : Max Power

Certiftcation:ISO9001CE, ROSH, UN38.3， CNAS, MSDS

Features

1.15 years design life in floating condition

2.Wide operating temperature range from -15 to 60℃

3.Nano gel electrolyte eliminate the acid stratification and prolong cycle life

4.Front access terminal with standard width for 19'' and 23'' ETSI racks

5.30% decreased float current lead to excellent high temperature resistance

6.Thick flat plate with high Tin low Calcium alloy

7.Low self discharge characteristic.

8.Excellent deep discharge recovery capability

Specification

Model	MP12-105F
Nominal Capacity (20℃)	105Ah @ 10HR-rate (to 1.80Vpc)
Dimension	L508xW109xH223mm
Weight	32.5kg
Terminal Type	Female Copper Insert M6 (torque: 6—7N.m)
Designed Floating Life	15years
Internal Resistance	fully charged at 20℃:0.008Ohm
Self Discharge	3% of capacity declined per month at 20℃
Max. Charge Current	14A
Max. Discharge Current (5S)	1000A
Short Circuit Current	1500A
Charge Voltage (25℃)	14.1-14.4V(-5mV/Cell/℃), for Cycle use
Charge Voltage (25℃)	13.5-13.7V(-3mV/Cell/℃), for Float use
Ambient Temperature	Discharge: -15℃—60℃
	Charge: -15℃—60℃
	Storage: -15℃---45℃
