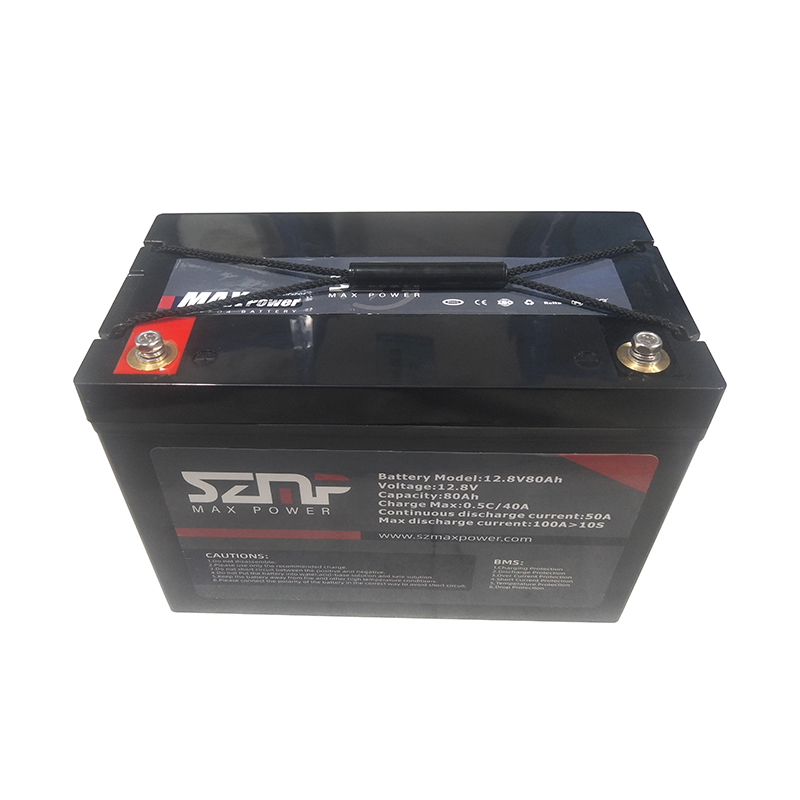

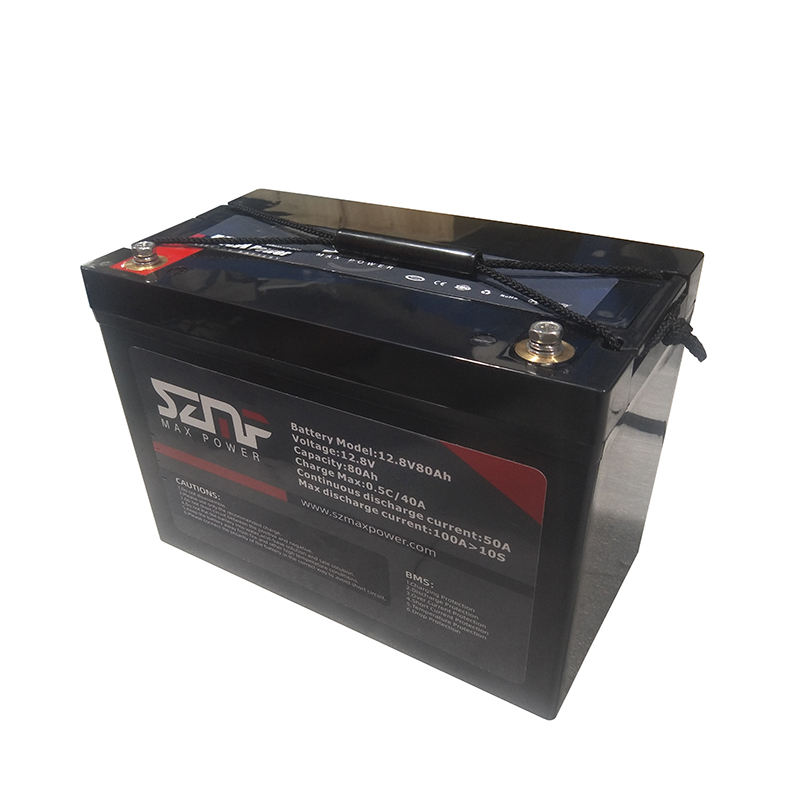

12.8V80AH

12.8V80ah lithium battery lifepo4 cell storage batteries long life span deep cycle solar inverter telecom UPS
Key Feature
Voltage : 12.8V
Capacity : 80Ah
Battery type : Lifepo4 Battery
Cycle life: 2000-6000 times
Warranty :2 Year
OEM :Available
Application :electric motorcycle, forklift, golf cart ,boat
Cell Brand :CATL,BYD,EVE,CALB,SVOLT,LG,REPT,Gotion,ANC etc.
Certification:ISO9001,CE, ROSH,UN38.3,CNAS,MSDS,KC
Features and advantage
  • 1. Safety: telecom base station lifepo4 battery, built-in BMS, no fire, none explosive

  • 2. Clean and green energy, does not contain toxic material

  • 3. Powerful

  • 4. Prolonged life cycle, after 2000 cycles, the residual capacity exceeds 80% of its original capacity.

  • 5. No memory effect, highly efficient charging at any time

  • 6. Wide operating temperature: -10 ~ 55 ° C

  • 7. Small size and light weight.

  • 8. Low self-discharge rate: <3% monthly

  • 9. With individual package, clear warning mark, logo. Instruction manual printed in colors

  • 10. Max Power LiFePO4 Battery have high energy Density, Long cycle life,widely work temperature range and good safety performance, Mainly use in solar power system.wind power,and others energy storage power systems. UPS system, telecommunications system.As well as electric tools ,electric bicycles ,electric motorcycles,military equipment amd other fields.

Specification

Item General Parameter Remark
Standard capacity(0.2C5A) 80AH
Minimum Capacity 79AH
Rated voltage 12.8V (Work voltage:3.20V)
Max Charge voltage 14.6V (Single Ave. charge Voltage)
Cut-off voltage 10V (Single Ave. Discharge Voltage)
Standard charge current 40A 0.5C
charging Time About 2h
Standard discharge current 65A 0.8C
Max Continuous discharge current 80A 1C
Peak discharge current 200A  10S
Cycle Life Cycles ≥4000times 0.5C,70% of initial capacity
Battery dimension 260*168*208mm
Total weight(Approx.) About12kg
Impedance(Max, at 1000Hz.) ≤50mΩ
Charge method (CC/CV) Standard 0℃~45℃
discharge -20℃~65℃
storage 0℃~45℃
The data is for reference only, all parameters can be customized
